Figure 5

From: Effects of different fertilization practices on maize yield, soil nutrients, soil moisture, and water use efficiency in northern China based on a meta-analysis

Figure 5

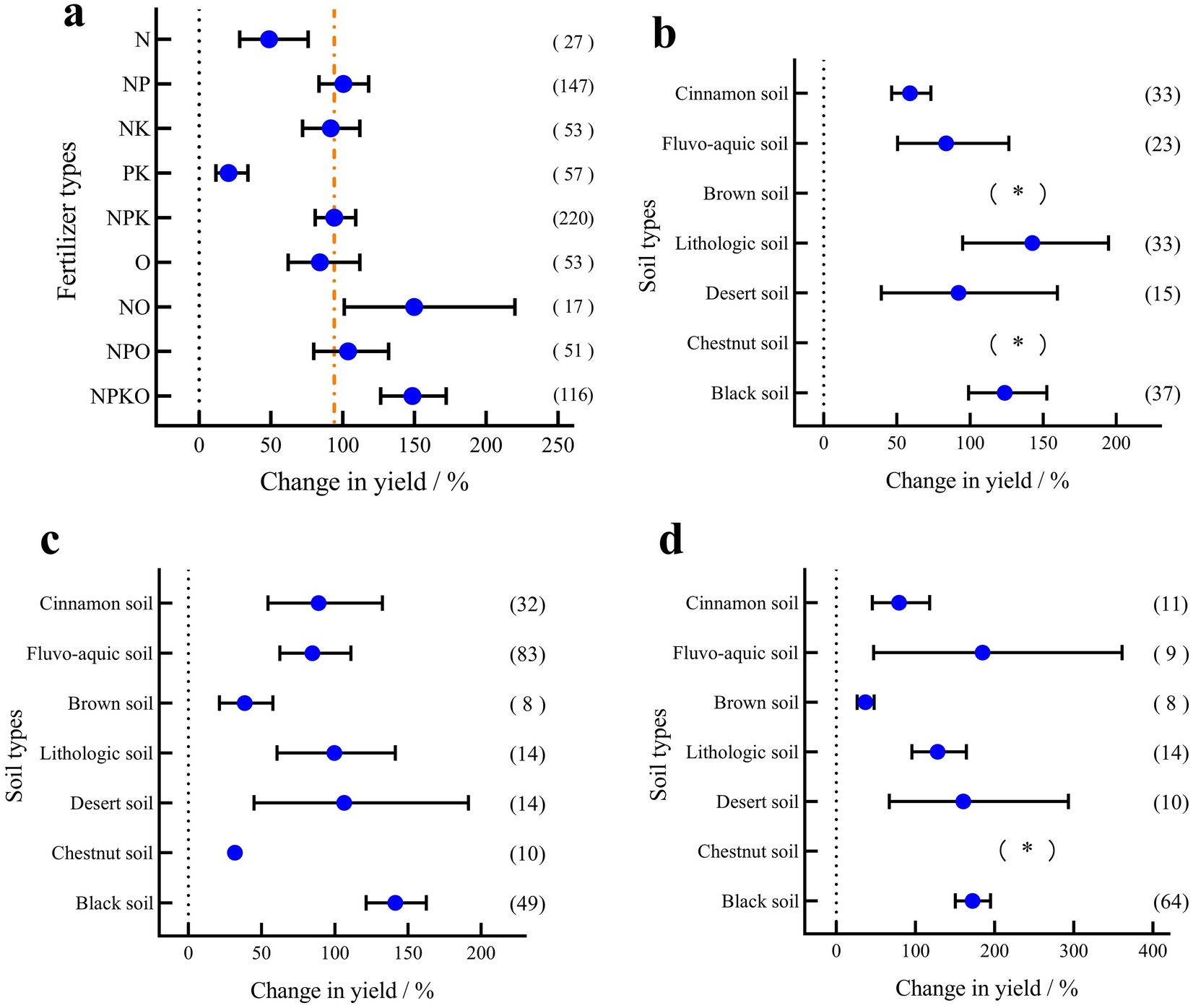

Maize yield and soil type under different fertilization treatments. (a) Maize yield under different fertilization treatments. (b) Maize yield in different soil types under NP fertilization. (c) Maize yield in different soil types under NPK fertilization. (d) Maize yield in different soil types under NPKO fertilization.
