Figure 9
From: Influence of saturation level on the acoustic emission characteristics of gas hydrate-bearing coal

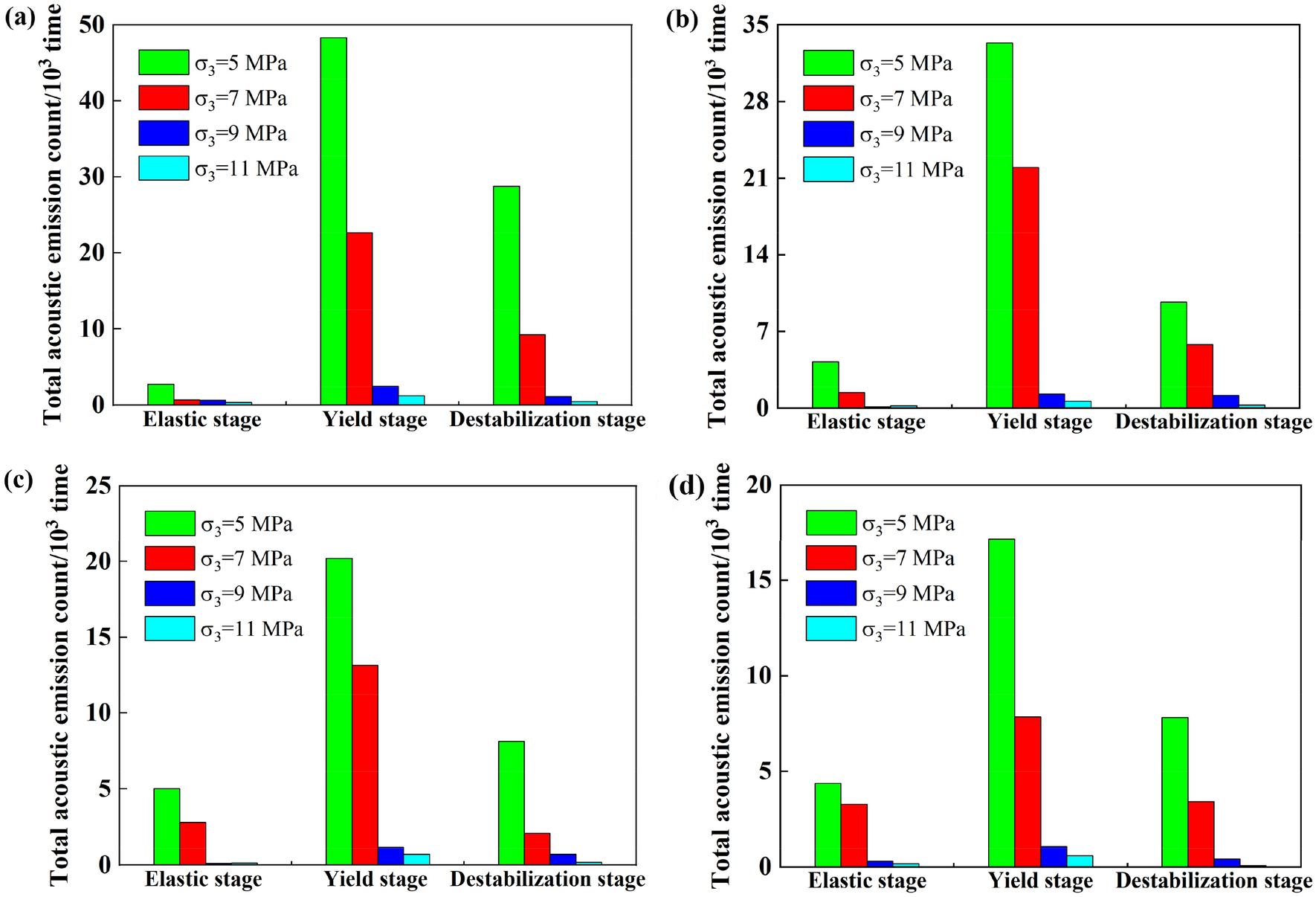

Influence of confining pressure on accumulative acoustic emission ringing count of gas hydrate bearing coal in different stages (a) Saturation 20%, (b) Saturation 40%, (c) Saturation 60%, (d) Saturation 80%
