Figure 8
From: Diatom-inspired silicification process for development of green flexible silica composite aerogels

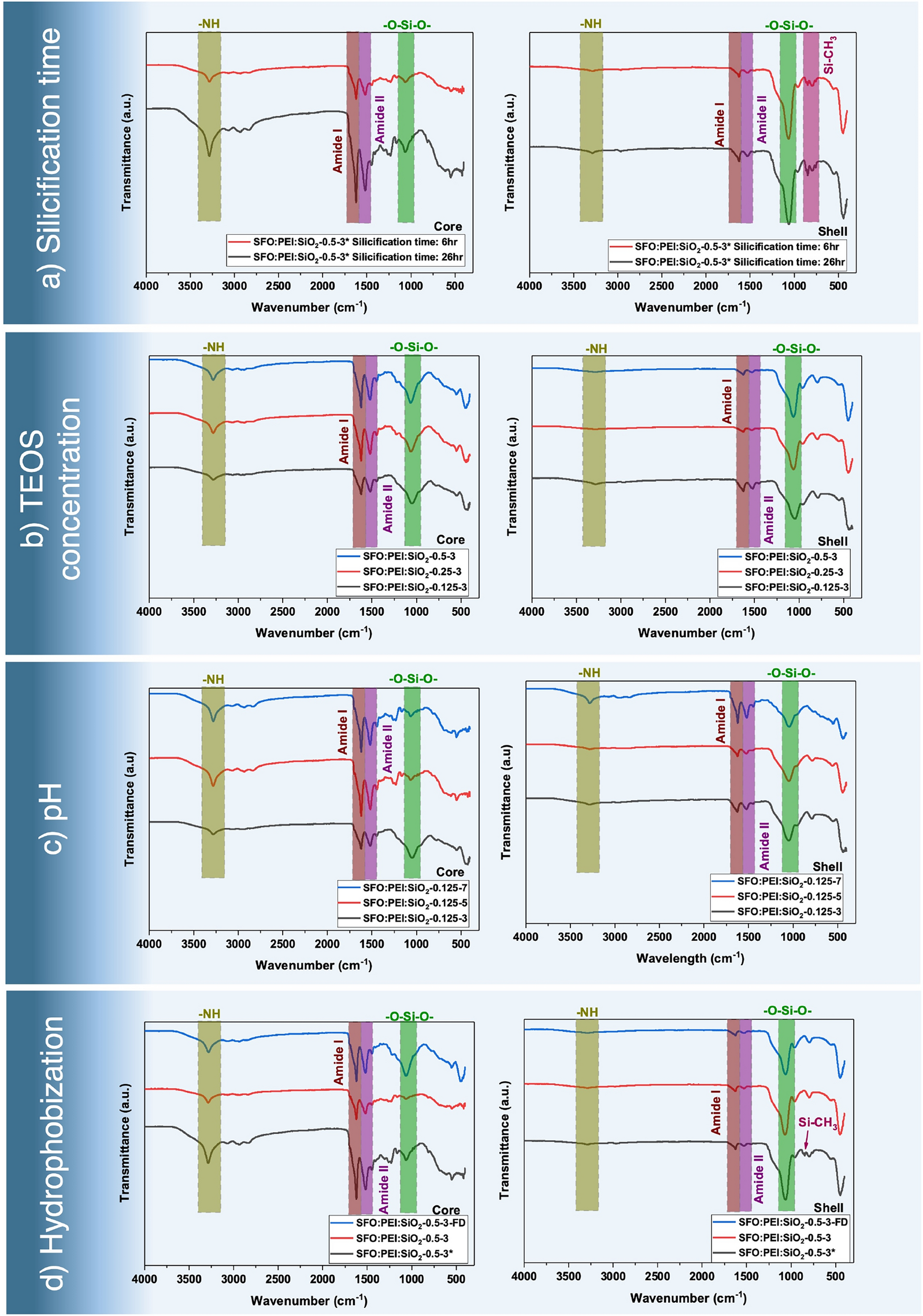

ATR-FTIR spectrum of core (left) and shell (right) of composites prepared with (a) varying silicification time, (b) varying TEOS concentration, (c) varying pH values, and (d) hydrophobization.
