Figure 10
From: Estimation of phase distortions of the photoplethysmographic signal in digital IIR filtering

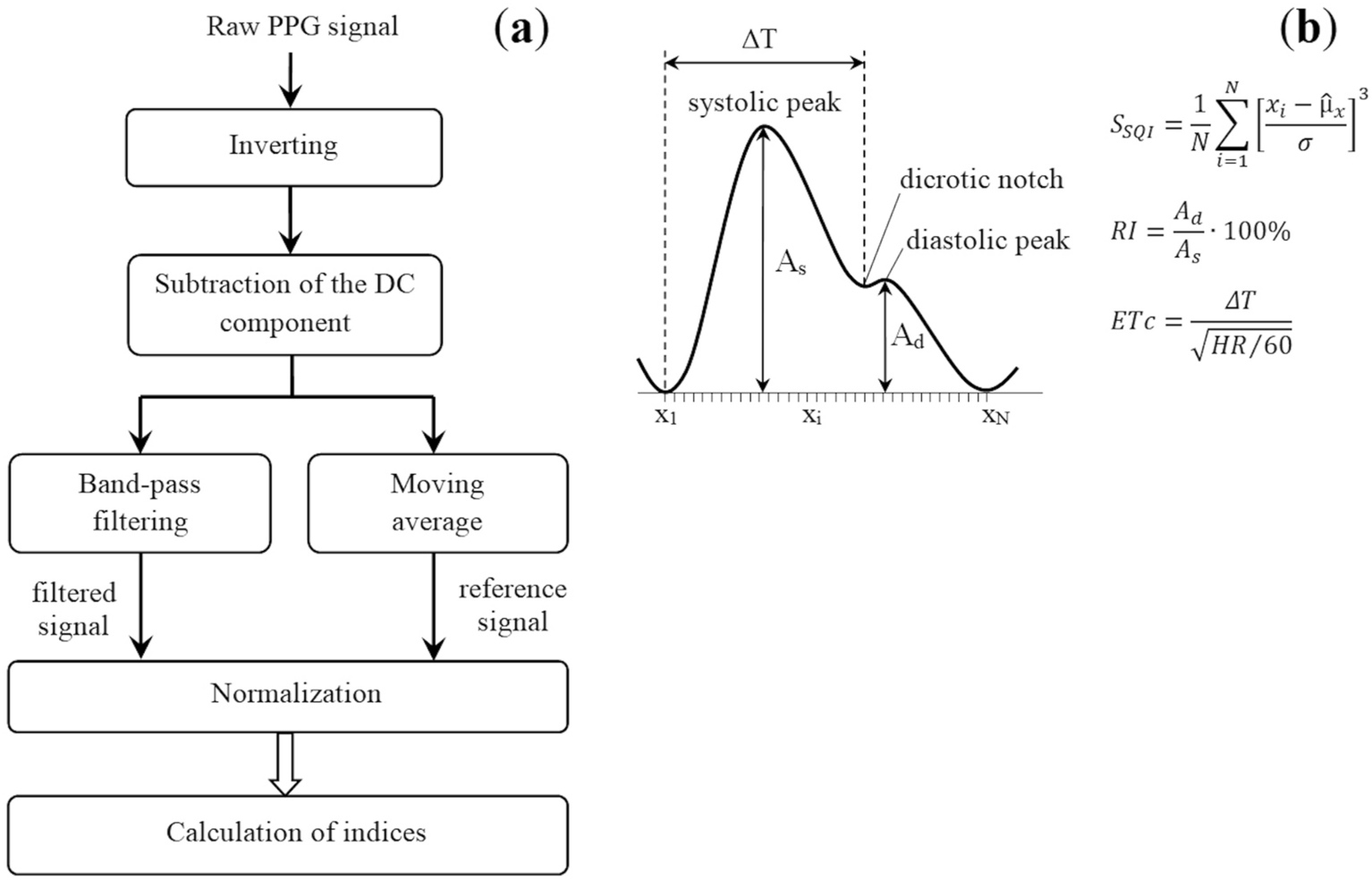

(a) Flowchart of the digital processing of the PPG signal; (b) explanation of calculated indices of the pulse waveform. HR denotes heart rate (beats per minute).
