Figure 5
From: Haemodynamics of stent-mounted neural interfaces in tapered and deformed blood vessels

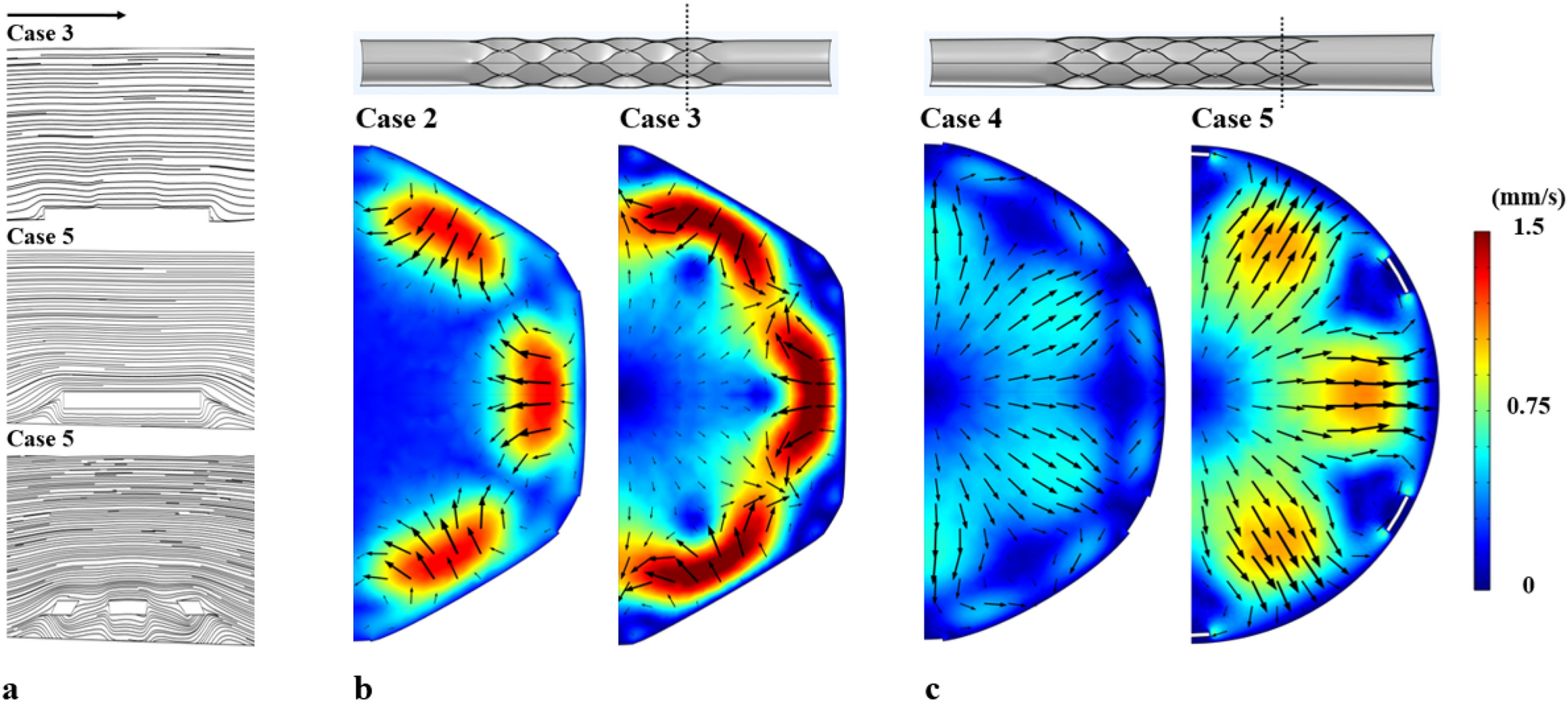

(a) Streamlines of blood flow over the stent struts and electrodes for Case 3 (deformation) and Case 5 (tapering). (b) Secondary flow magnitude at the blood vessel cross-section (dotted line) for Cases 2 and 3 without tapering. (c) Secondary flow magnitude at the blood vessel cross-section for Cases 4 and 5 with tapering.
