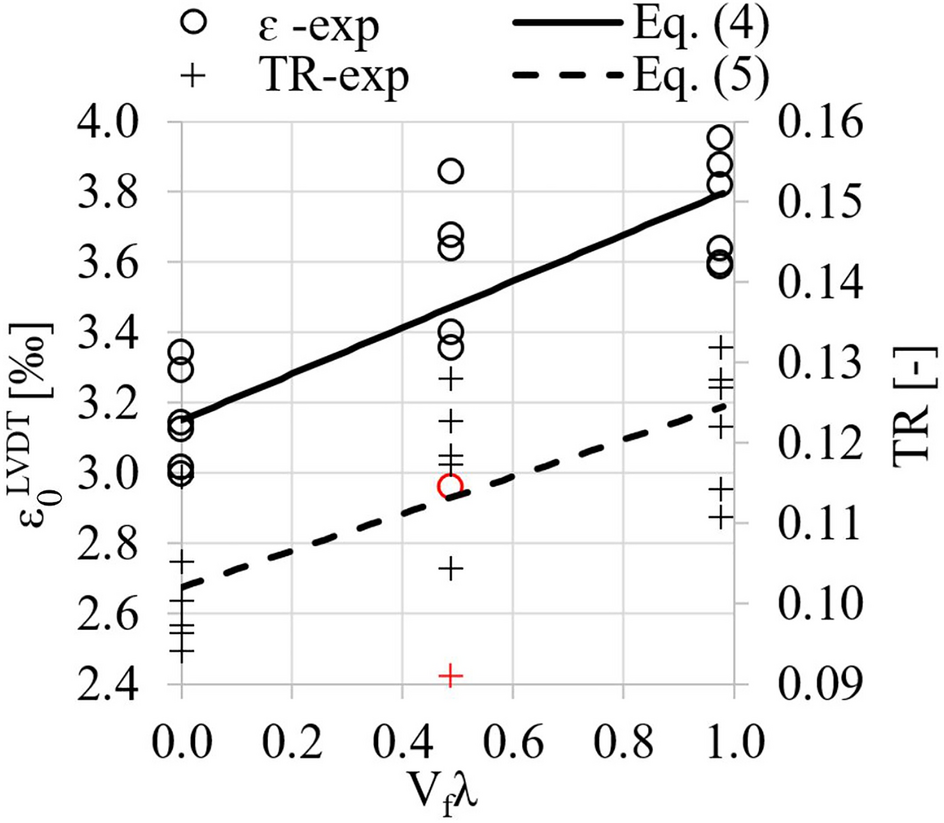

Figure 9
Strains εLVDT corresponding to maximum compressive stress and toughness ratio (TR) as a function of the degree of fiber reinforcement (red color indicates outliers that were not included in the regression analysis).
