Figure 10

From: Heat shock factor 1 inhibition enhances the effects of modulated electro hyperthermia in a triple negative breast cancer mouse model

Figure 10

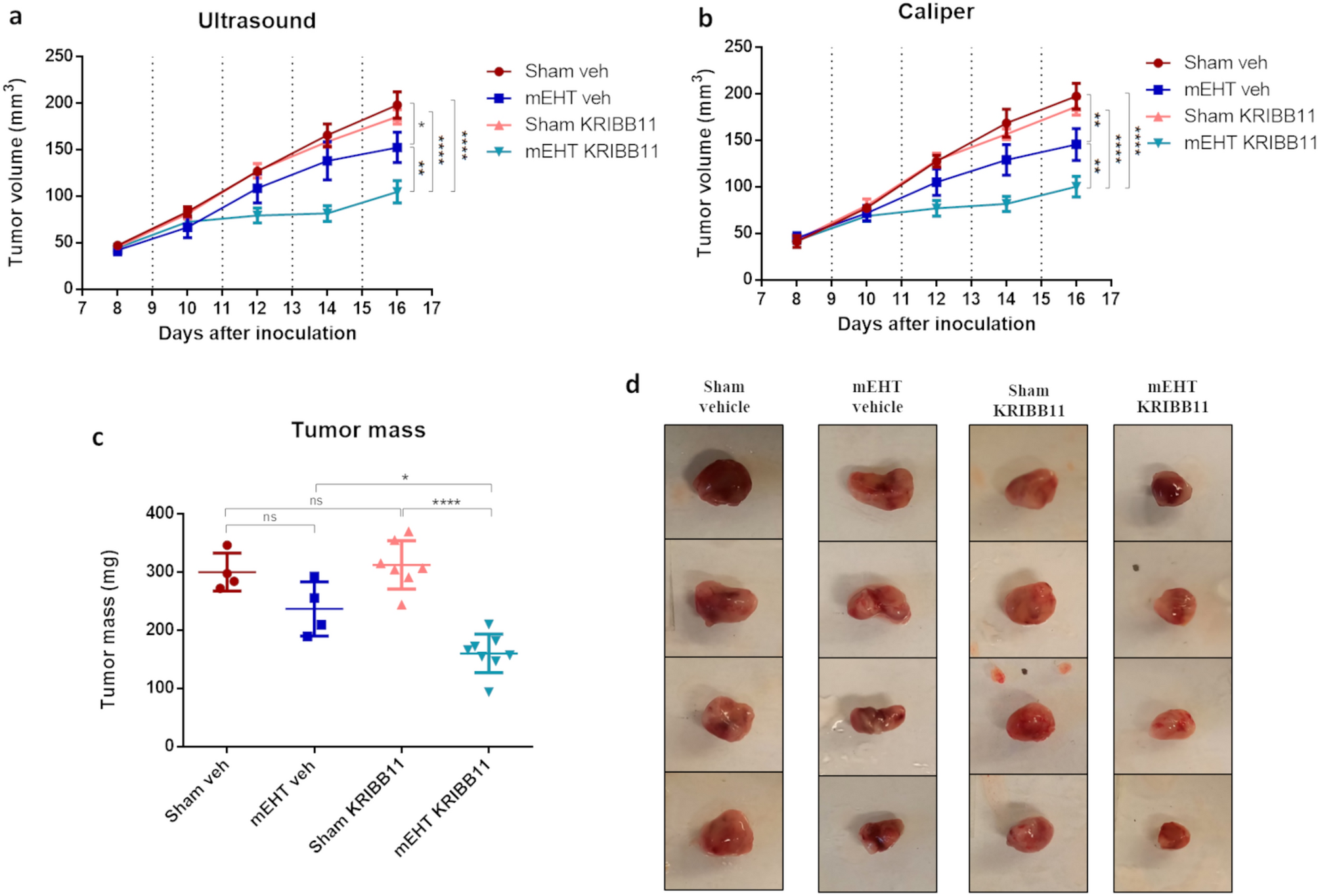

Tumor volume time-course and tumor mass at study termination in the combination therapy experiment. Tumor growth inhibition as measured by (a) ultrasound and (b) digital caliper. (c) Tumor mass and (d) Four representative tumor images of each group (columns) by experiment termination. Mean ± SD, One-Way and Two-Way Anova, Mean ± SD, n = 4–8/group, ns = not significant, *p < 0.05, **p < 0.01, ****p < 0.0001.
