Figure 4

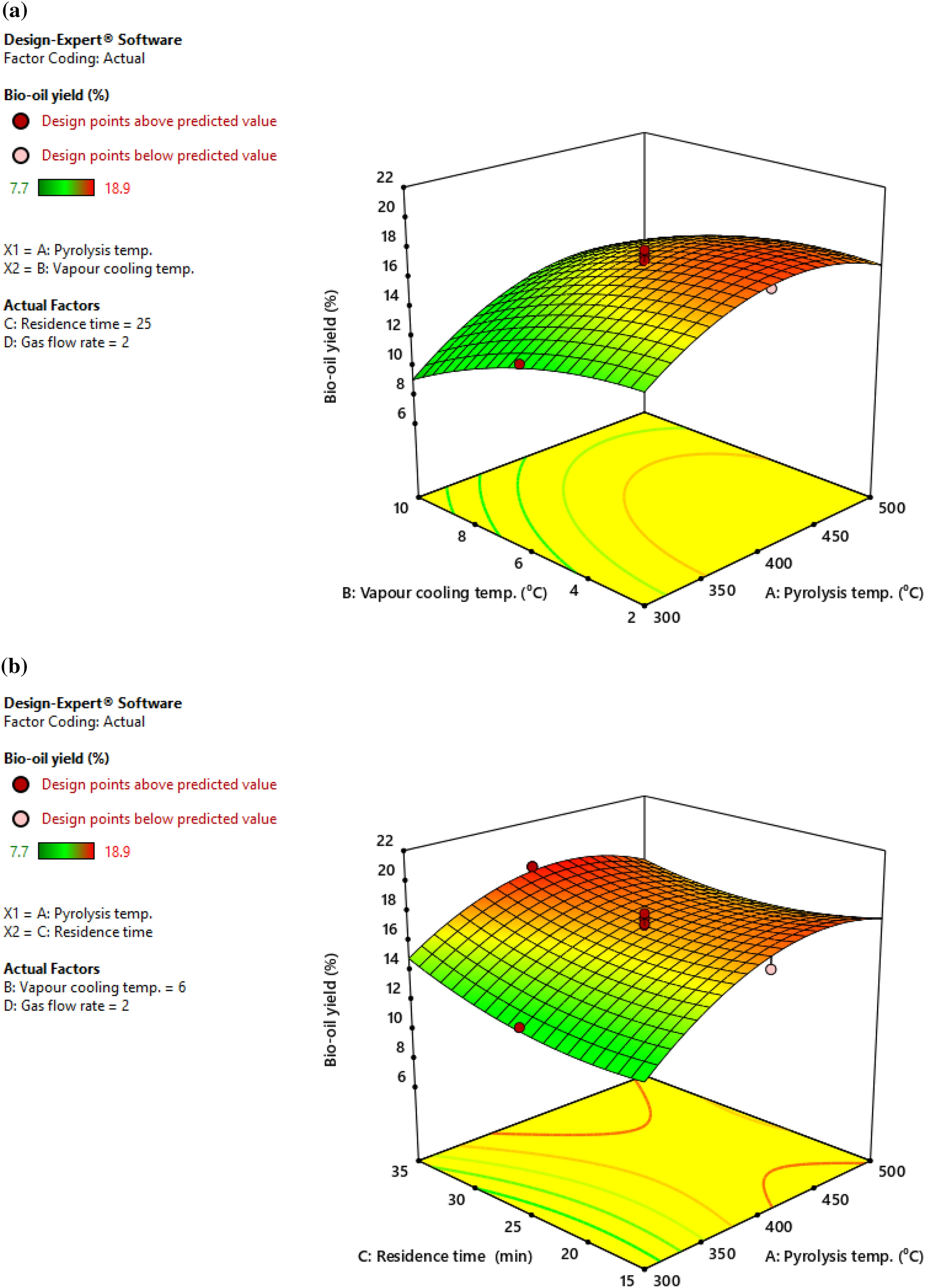

(a). Interaction effect of pyrolysis temperature (A) and vapour cooling temperature (B) on bio-oil yield. (b). Interaction effect of pyrolysis temperature (A) and residence time (C) on bio-oil yield. (c) Interaction effect of vapour cooling temperature (B) and residence time (C) on bio-oil yield.
