Figure 5
From: Porous sulfur polymers for effective aqueous-phase organic contaminant removal

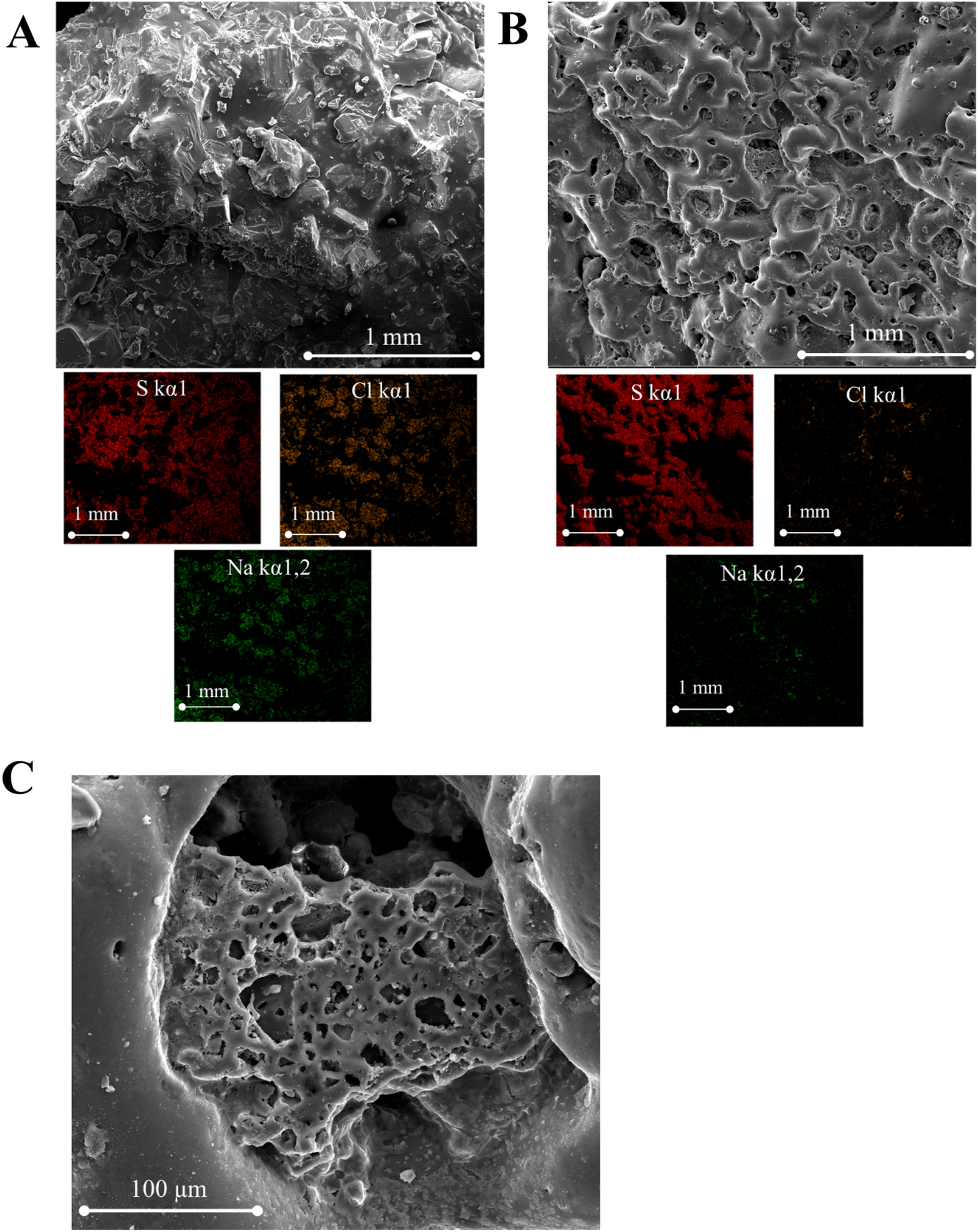

SEM image of PSP40:60:1.000 (A) before water treatment (insight image shows the Na, Cl, and S elemental mapping) and (B) after treatment with water (insight image shows the EDS of the sample). (C) High magnification image of the PSP40:60:1.000 after water treatment. PSPX:Y:Z = X%[DIB]:Y%[S8]:Zg[NaCl].
