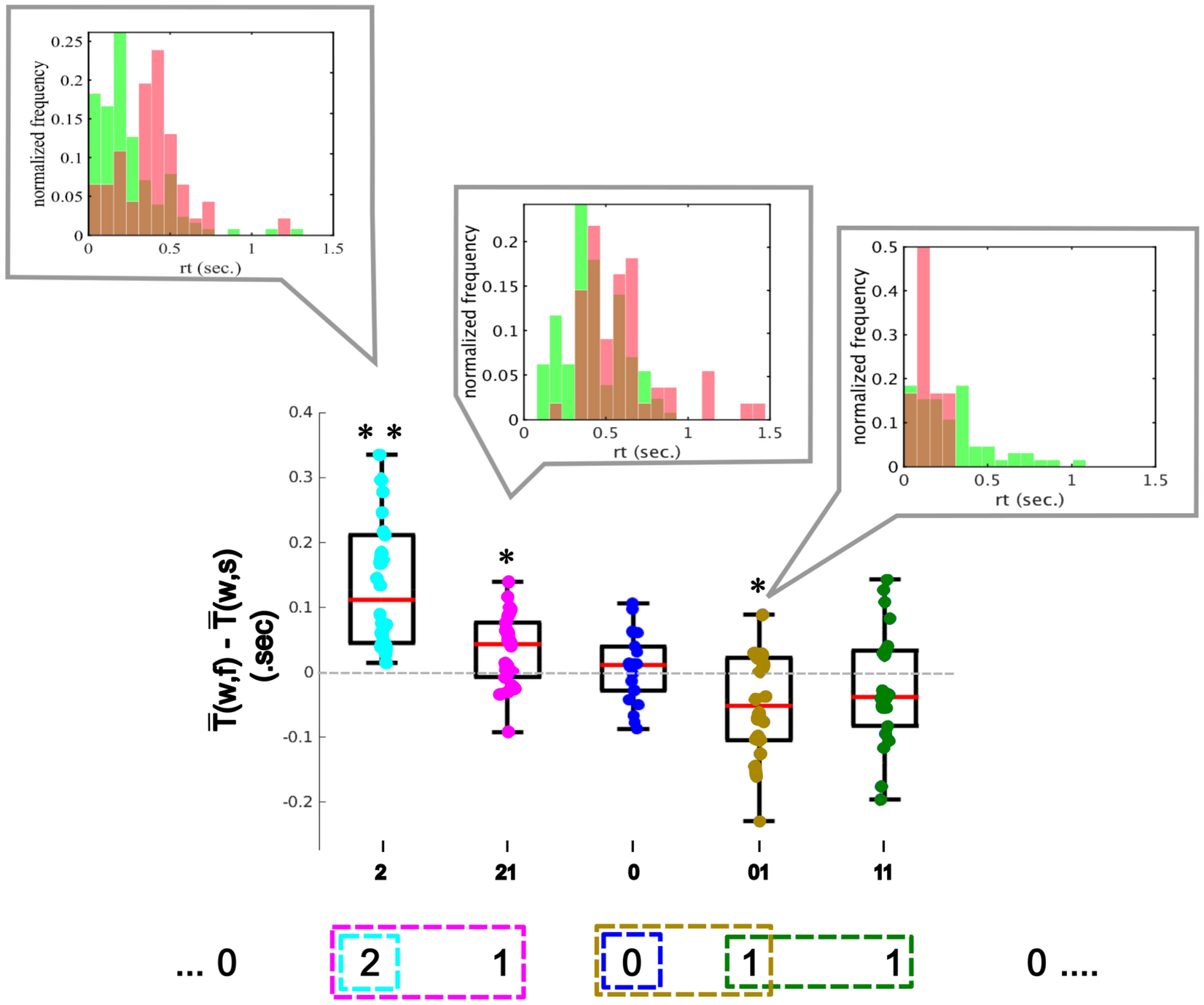

Figure 3
From: Response times are affected by mispredictions in a stochastic game
Difference between the mean response time after an incorrect prediction following a 0 (\({\bar{T}}^{(w,f)}\)) and the mean response time after an correct prediction following a 0 (\({\bar{T}}^{(w,s)}\)) for each context. Significance levels of the Wilcoxon signed rank test are indicated by \(*\) (\(p < 0.05\)) and \(**\) (\(p = 4.1 \times 10^{-5}\)). All the p-values were accepted after applying the Benjamini-Hochberg procedure. Each dot shows the paired difference per participant. On top of each distribution, superimposed histograms of the response times of one participant illustrate the differences between \({\bar{T}}^{(w,s)}\) in green and \({\bar{T}}^{(w,f)}\) in red. The sequence of contexts governing the choices of the penalty taker is presented at the bottom.
