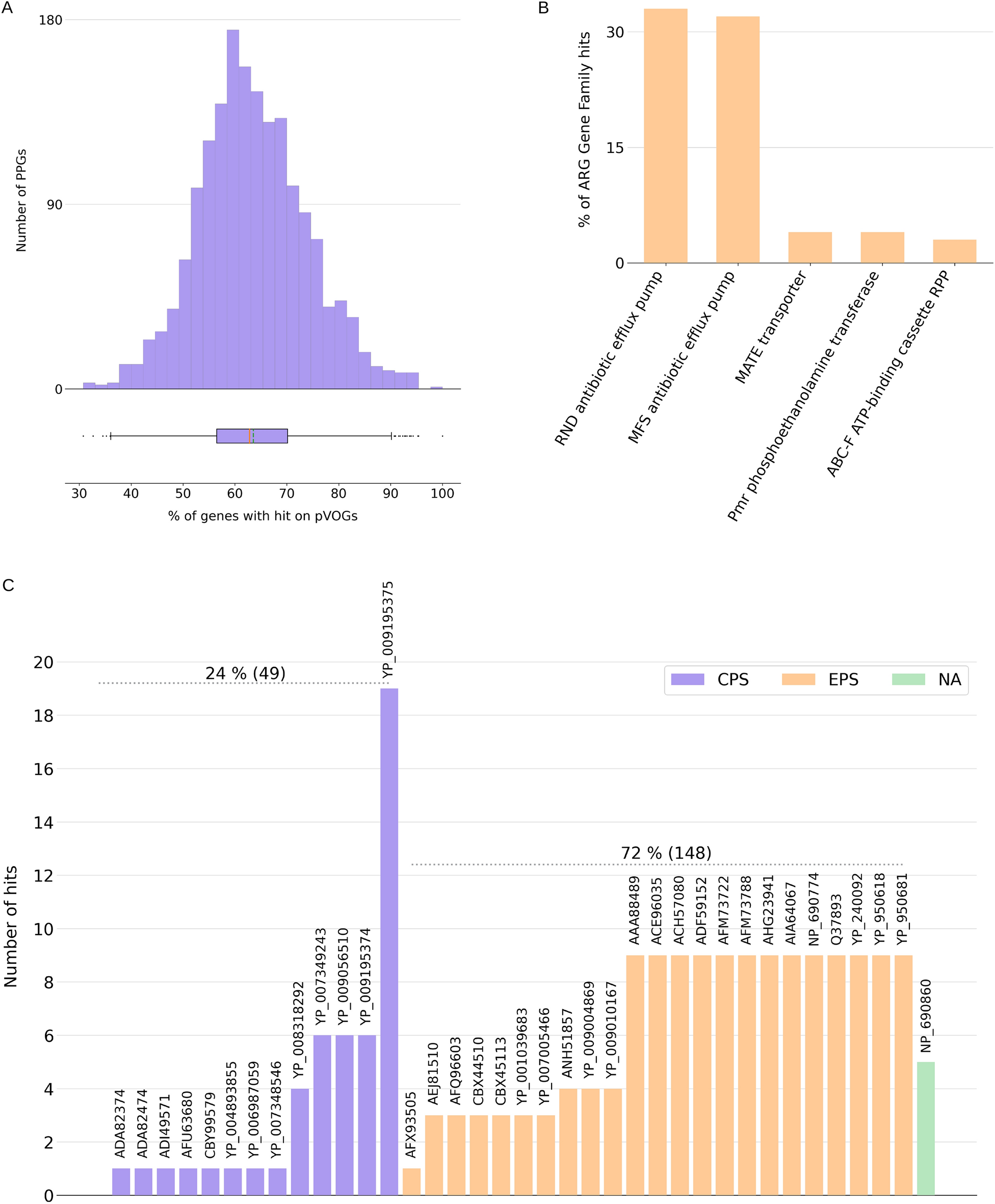

Functional exploration of PPGs. (A) Distribution of known phage protein families from pVOGs in PPG predicted proteins. The green and red lines in the whisker plot mark the median and mean values, respectively. (B) Top five antimicrobial resistance genes gene (ARG) families found in PPGs. Significant hits were grouped by ARG family. All hits grouped by ARG family can be found in Supplementary Table S3. (C) Putative depolymerases found in 45 PPGs. Capsular polysaccharides depolymerases bars are colored in yellow, exopolysaccharides depolymerases bars are colored in orange, and non-identified matches are colored in red. The accession numbers of aligned depolymerases are shown above each bar.
