Figure 5
From: Spectral band selection and ANIMR-GAN for high-performance multispectral coal gangue classification

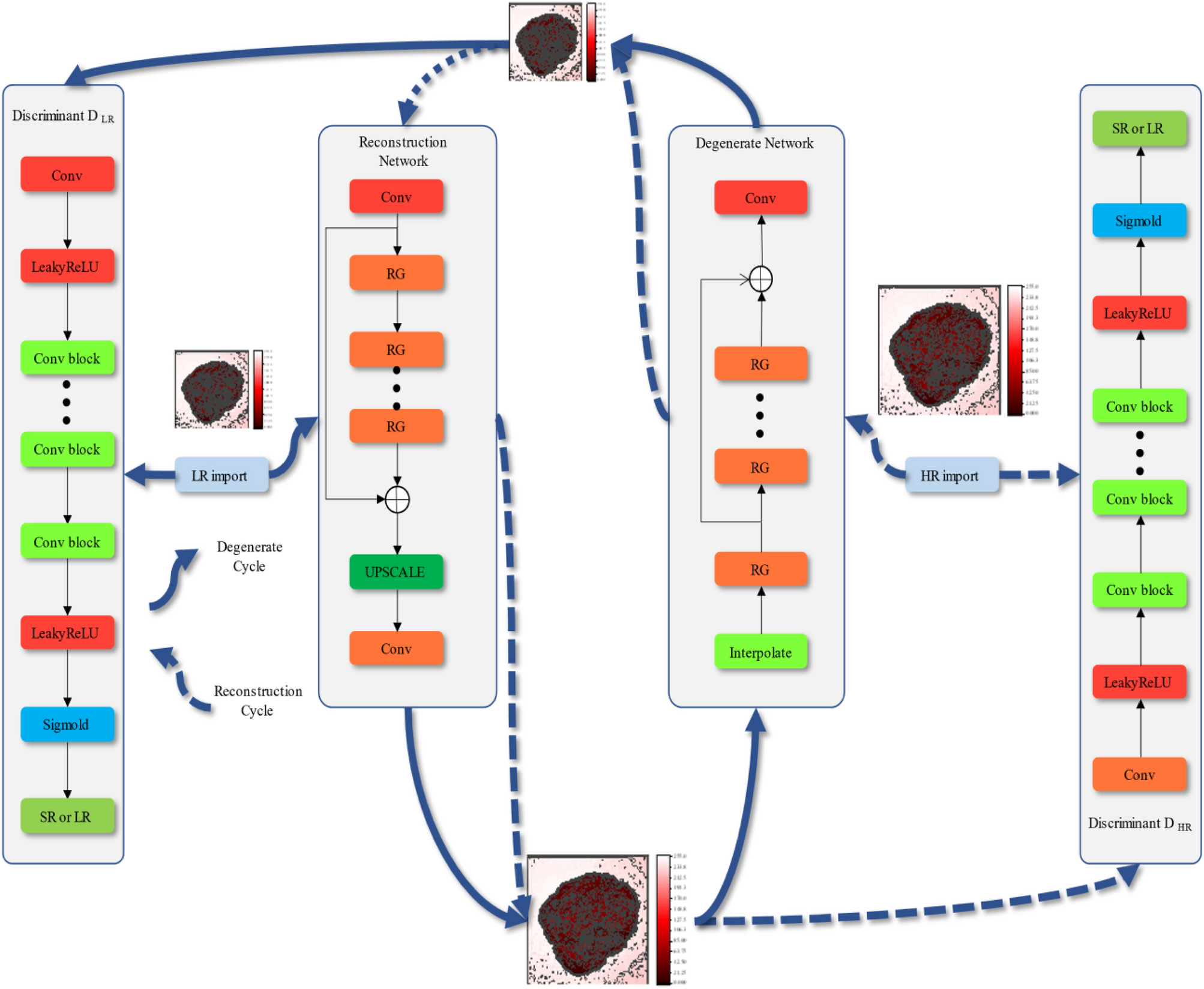

The overall ANIMR-GAN system architecture, RG residual group, The large heat maps represent the high-resolution images, the small heat maps represent the low-resolution images, a solid line represents a generative network, and a dashed line represents a reconstructed network, including a generator G, a degenerate network F, a low-resolution discriminator DLR, and a high-resolution discriminator DHR.
