From: Phylogeny and structural modeling of the transcription factor CsqR (YihW) from Escherichia coli

Figure 2The alternative text for this image may have been generated using AI.

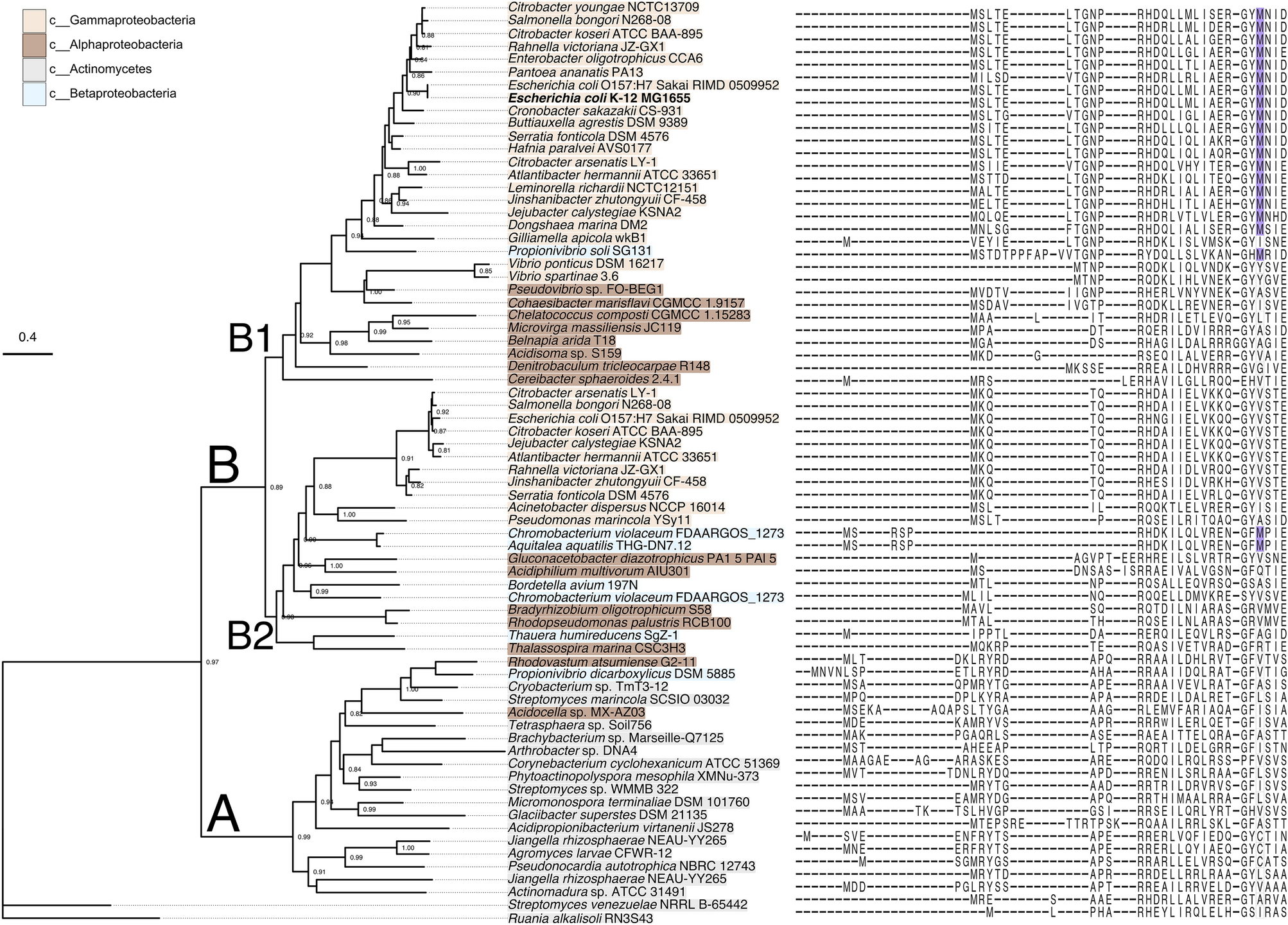

Phylogenetic tree of CsqR and its homologs from Gamma-, Beta-, Alphaproteobacteria and Actinomycetes. The left panel shows the tree inferred using the maximum likelihood algorithm and rooted manually by the branch leading to CsqR homologs from Streptomyces venezuelae str. NRRL B-65442 and Ruania alkalisoli str. RN3S43. The right panel features the first 62 positions of the multiple sequence alignment. Methionines aligned to Met25 of the reference E. coli str. K-12 MG1655 are marked violet.
