Figure 4
From: Centella asiatica mitigates the detrimental effects of Bisphenol-A (BPA) on pancreatic islets

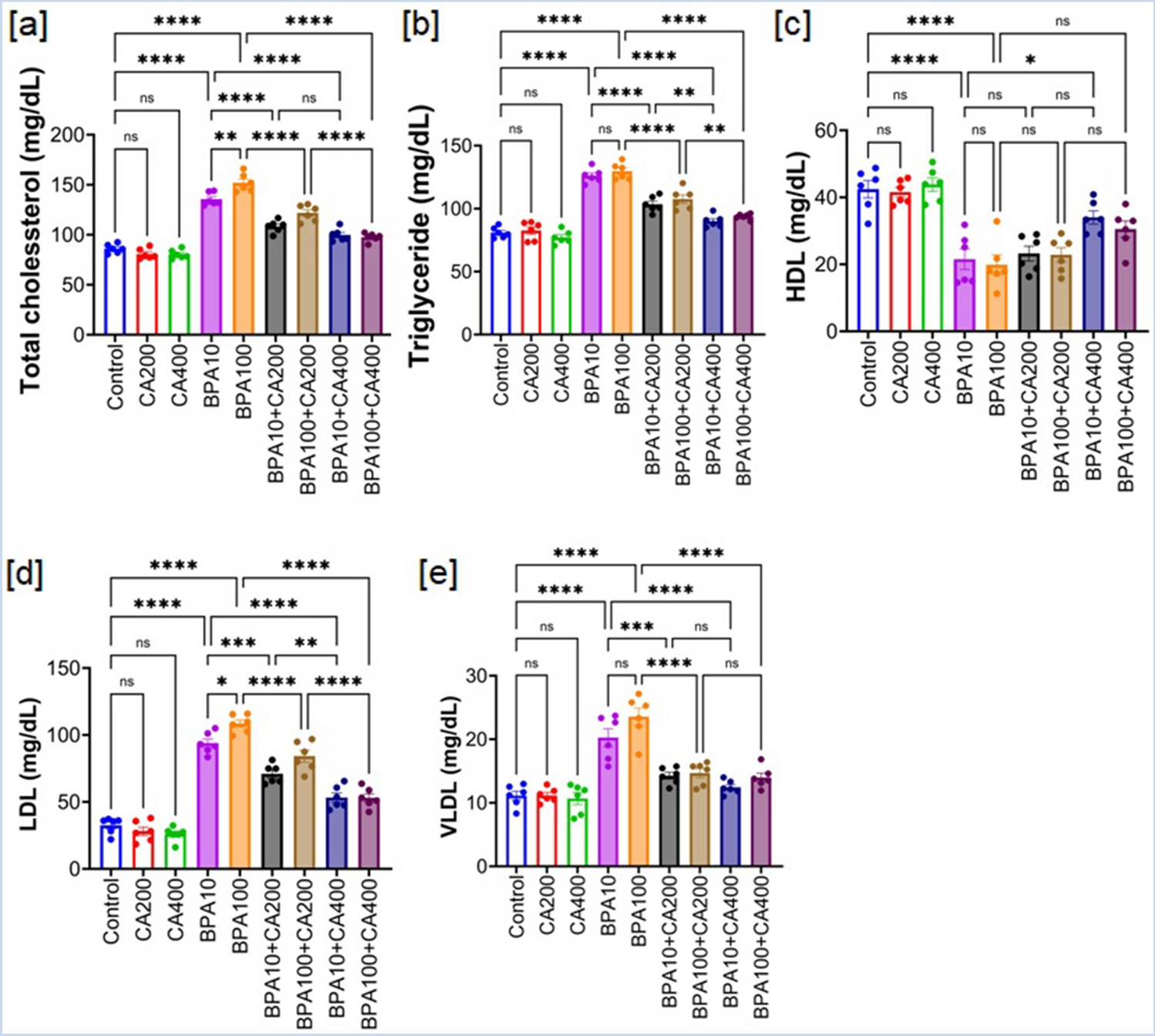

Adverse effect of BPA on lipid profile parameters of mice: protective role of CA. Serum lipid profiles of BPA (10 and 100 µg/kg body weight for 21 days)-treated mice with or without CA supplementation (200 and 400 mg/kg body weight/day for 21 days). (a) Total cholesterol (mg/dl), (b) triglycerides (mg/dl), (c) HDL (mg/dl), (d) LDL (mg/dl) and (e) VLDL (mg/dl). Data were presented as mean ± SEM (n = 6). Normality of data was tested by Shapiro–Wilk test. Significance level based on one way ANOVA, p < 0.05. Significance level based on Tukey’s post hoc test *p < 0.05, **p < 0.01, ***p < 0.001, ****p < 0.0001, ns not significant.
