From: A study on the significance of serine hydroxymethyl transferase expression and its role in bladder cancer

Figure 2

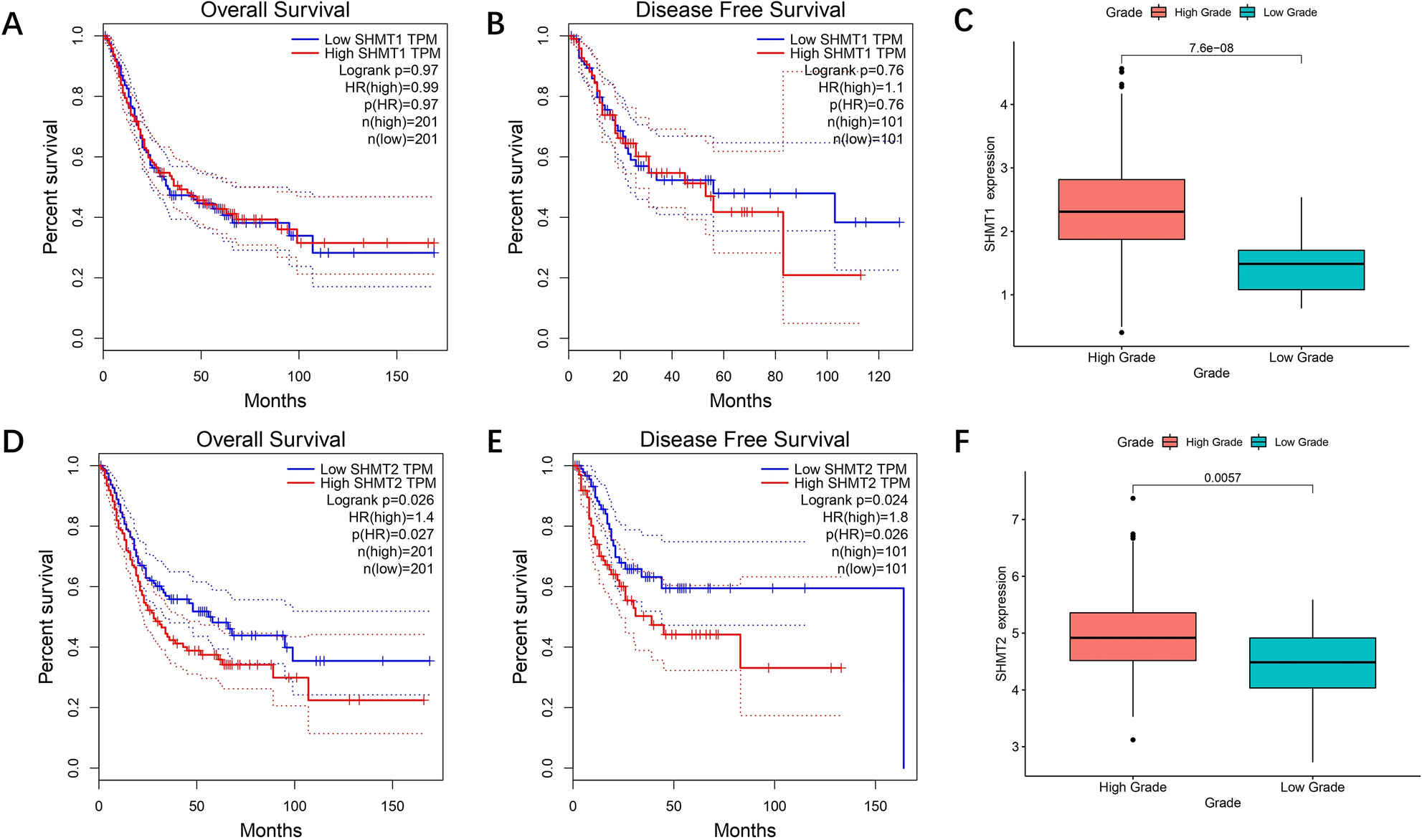

Analysis of the correlation between the clinical grading for SHMT1 and SHMT2 and clinical survival time. (A, D) GEPIA server-generated SHMT1 and SHMT2 OS curves; (B,E): GEPIA server-visualized SHMT1 and SHMT2 DFS curves; (C,F): clinical grade of each BLCA sample by R language Grade data were combined with their SHMT1/2 expression to visualise the results of clinical grade and gene correlation analysis, * P < 0.05, ** P < 0.01, *** P < 0.001.
