Figure 2
From: Gut-associated microbes are present and active in the pig nasal cavity

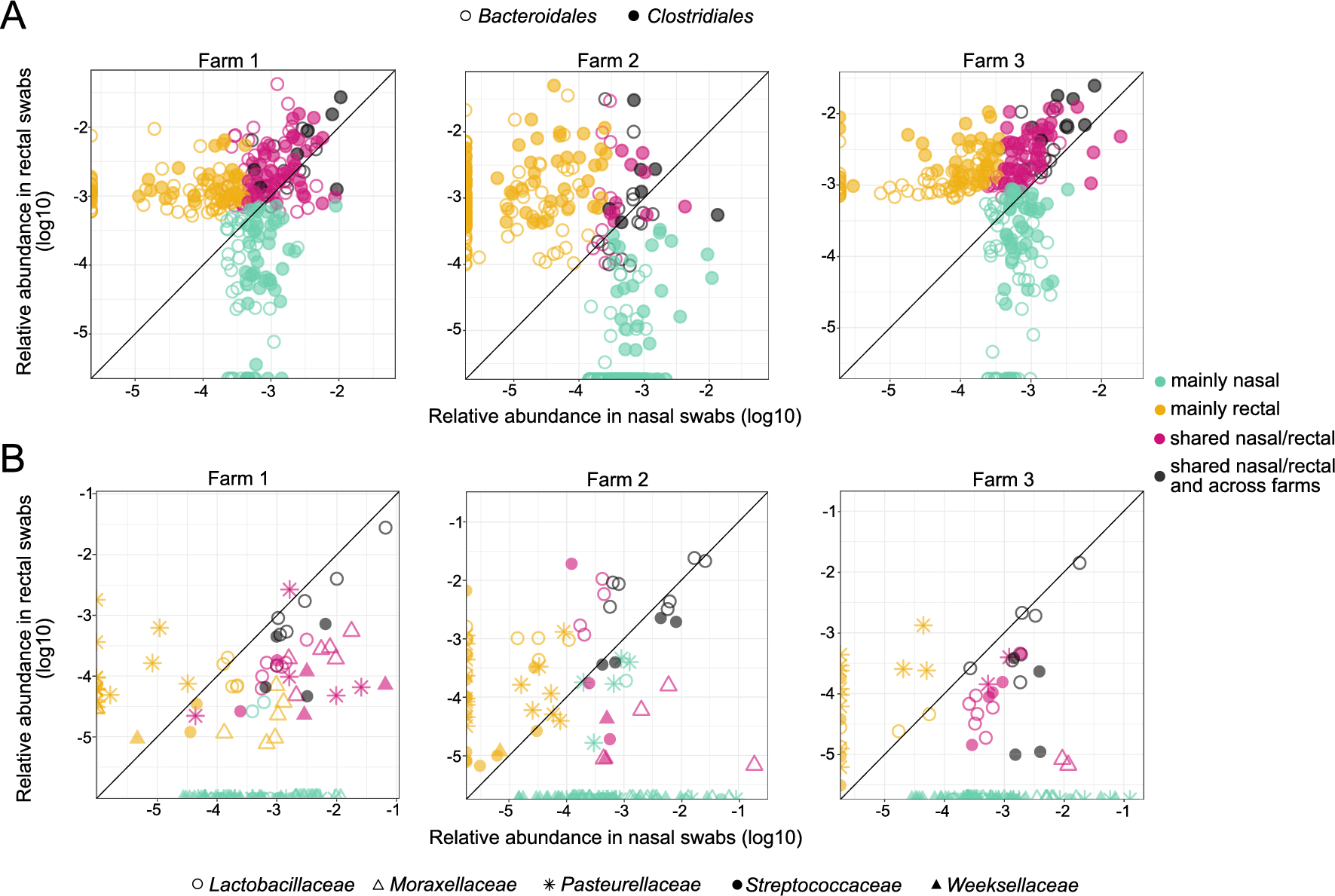

Nasal and rectal overlap of gut-microbiota associated taxa (A) and nasal colonizers (B) most prevalent ASVs per sampled farm. For gut-microbiota associated taxa the 100 most abundant ASVs in nasal and rectal samples were selected. For other nasal colonizers’ families (B), the top 20 ASVs were considered. Each dot corresponds to one ASV (mean abundance of 8 animals from each herd). Turquoise: ASV is among the most abundant ASVs in nasal but not rectal swabs. Yellow: ASV is among the most abundant ASVs in rectal but not nasal swabs. Pink: ASV is among the most abundant ASVs in both sites. Dark gray: ASV is among the most abundant ASVs in both sites, and also shared across the three sampled farms.
