From: Evaluating the accuracy of cerebrovascular computational fluid dynamics modeling through time-resolved experimental validation

Figure 5

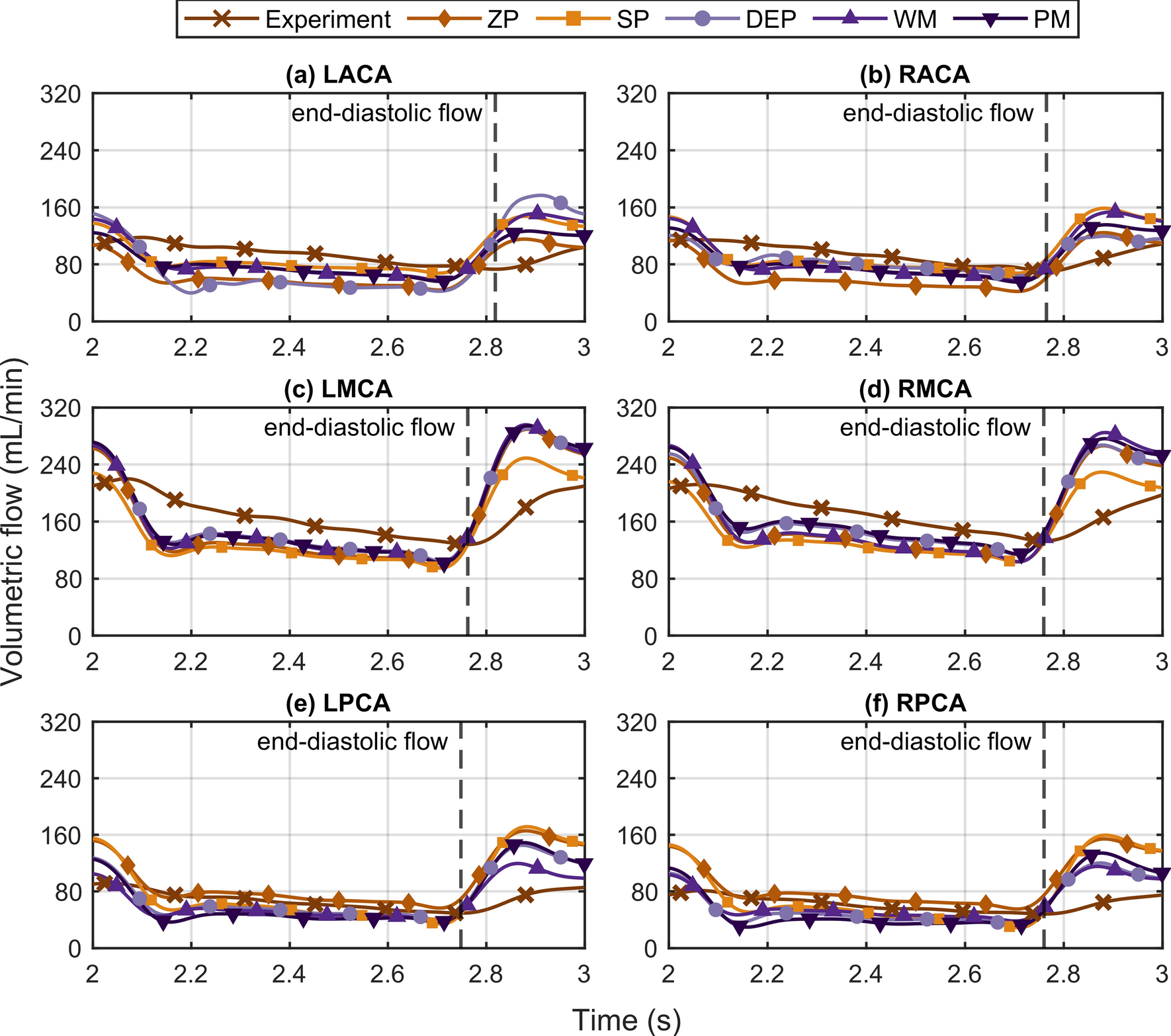

Comparison of the transient flows at the six outlet vessels: (a) LACA, (b) RACA, (c) LMCA, (d) RMCA, (e) LPCA, and (f) RPCA. For each outlet vessel, flow curves from the experiment and the five outlet boundary condition sets are plotted. ZP zero pressure, SP symmetrical pressure, DEP direct experimental pressure, WM Windkessel model, PM phase modulation.
