Figure 7
From: Longitudinal markers of cerebral amyloid angiopathy and related inflammation in rTg-DI rats

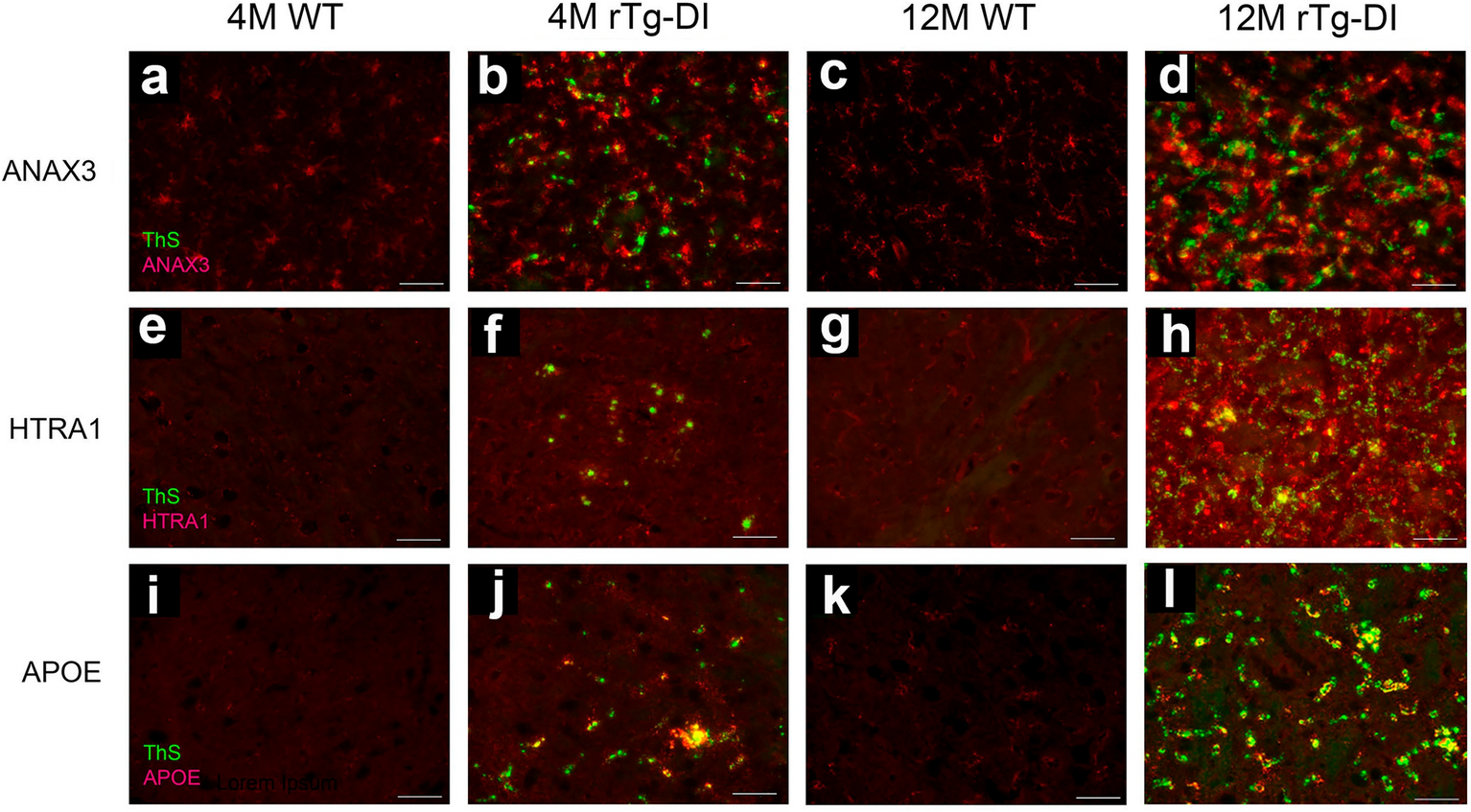

Increased immunolabeling for specific protein markers in rTg-DI rats. Brain sections from 4 M WT rats (a,e,i), 4 M rTg-DI rats (b,f,j) 12 M WT rats (c,g,k) and 12 M rTg-DI rats (d,h,l) were stained with thioflavin S to detect microvascular fibrillar amyloid (green) and rabbit polyclonal antibody to ANXA3 (a–d), HTRA1 (e–h) and APOE (i-l) (red). Scale bars = 50 µm. Representative images depicting the thalamic region show each protein is increased in the 4 M and 12 M rTg-DI rats.
