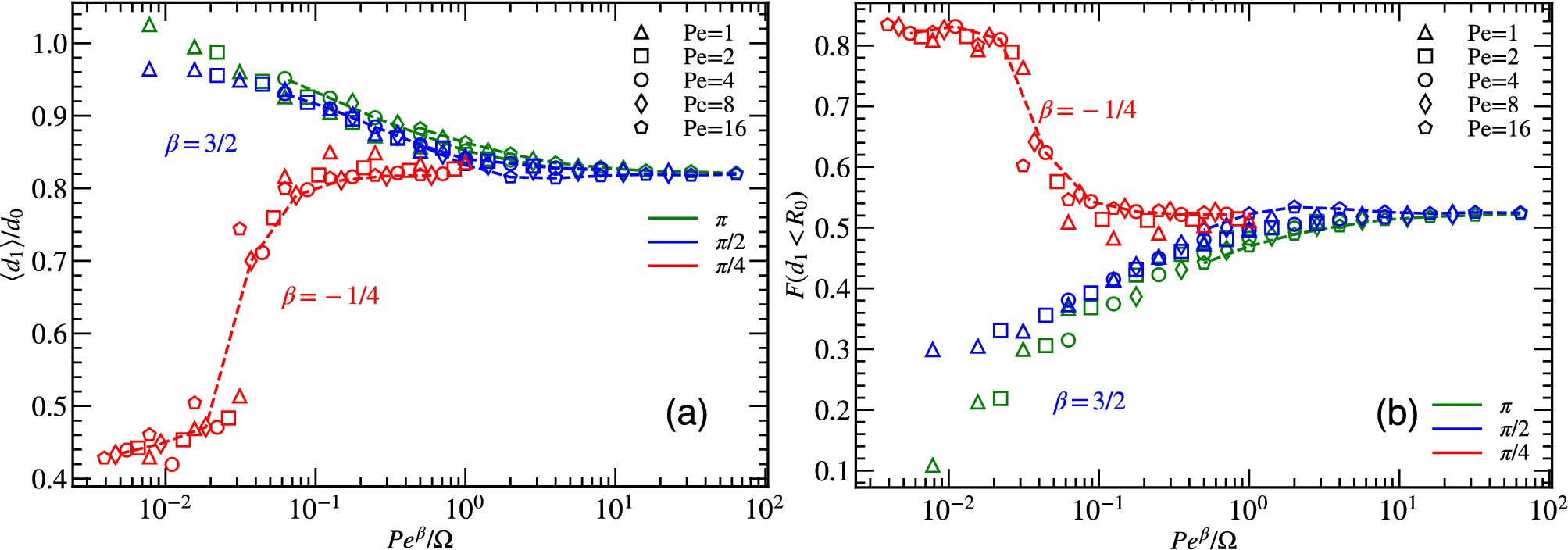

Figure 4
From: Controlling inter-particle distances in crowds of motile, cognitive, active particles
(a) Scaled average minimal distance \(\langle d_1 \rangle\) for different vision angles \(\theta\) as function of \(\hbox{Pe}^{\beta }/\Omega\), where \(\beta = 3/2\) for \(\pi\) and \(\pi /2\), and \(\beta =-1/4\) for \(\pi /4\). (b) Fraction F of particles within a distance \(R_{0}\) from other particles for various vision angle \(\theta\) and the \(\hbox{Pe}^{\beta }/\Omega\) ratio. All data are for systems with particle density \(\Phi =0.25\).
