Figure 4

From: Electrophysiological cardiovascular MR: procedure-ready mesh model generation for interventional guidance based on non-selective excitation compressed sensing whole heart imaging

Figure 4

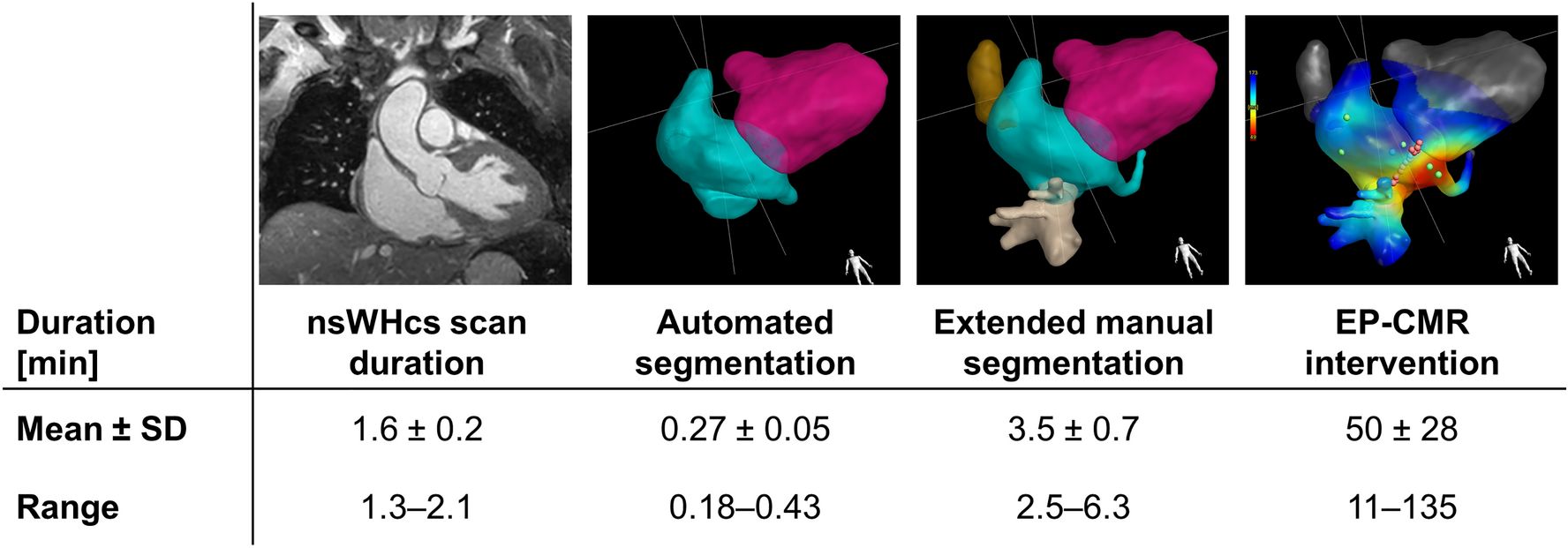

Processing time of nsWHcs and EP-CMR procedure duration. Mean duration of the procedural components of fully CMR-guided radiofrequency ablation of isthmus-dependent right atrial flutter. SD standard deviation, CMR cardiovascular magnetic resonance, EP-CMR CMR-guided electrophysiological procedure.
