Figure 13
From: Shear damage mechanisms of jointed rock mass: a macroscopic and mesoscopic study

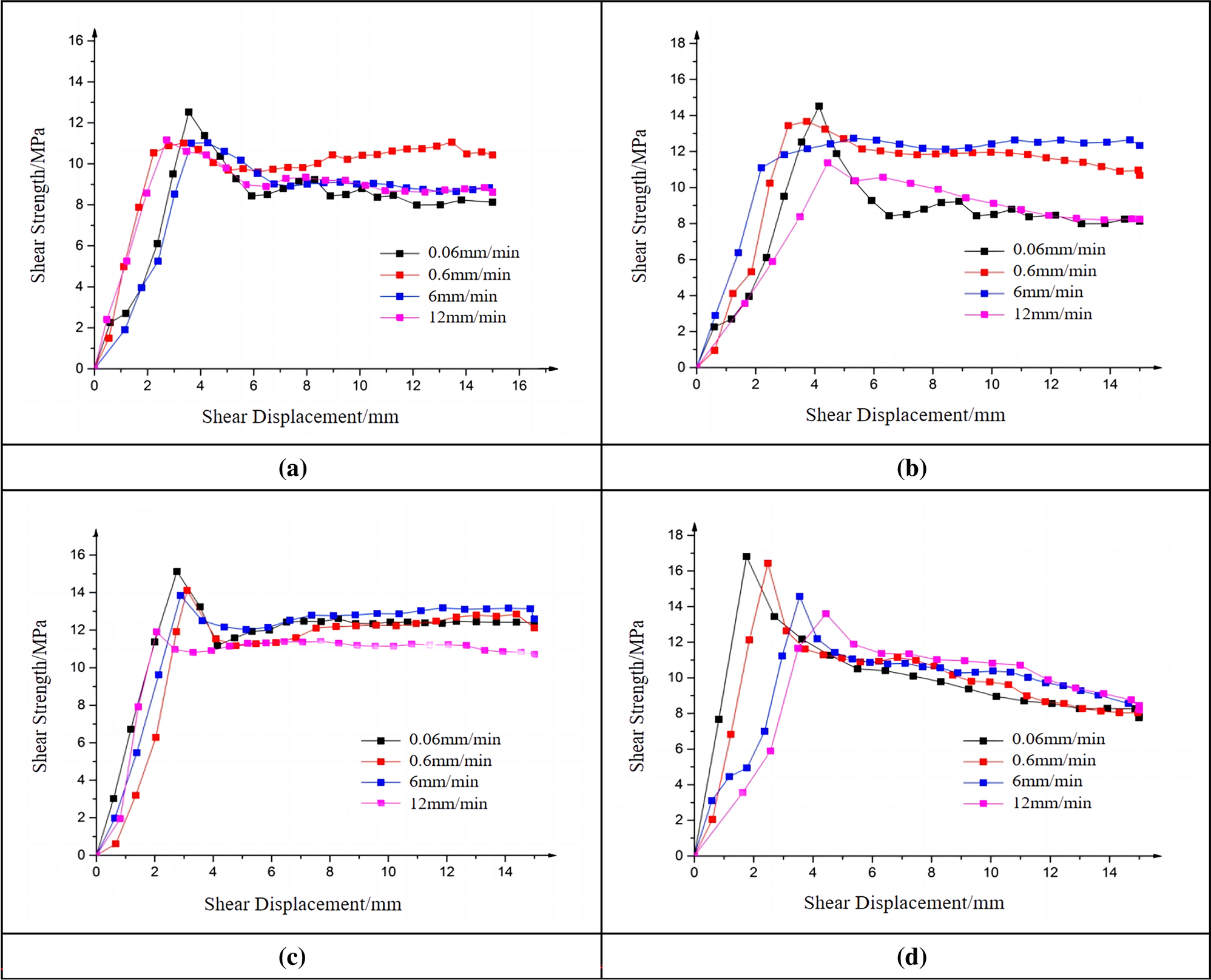

Shear strength-displacement curves of specimens with different shear rates. (a) Joint plane No. S1. (b) Joint plane No. S2. (c) Joint plane No. S3. (d) Joint plane No. S4.
