Figure 6
From: Calculation method and analysis of residual stress in the strip bending roller straightening process

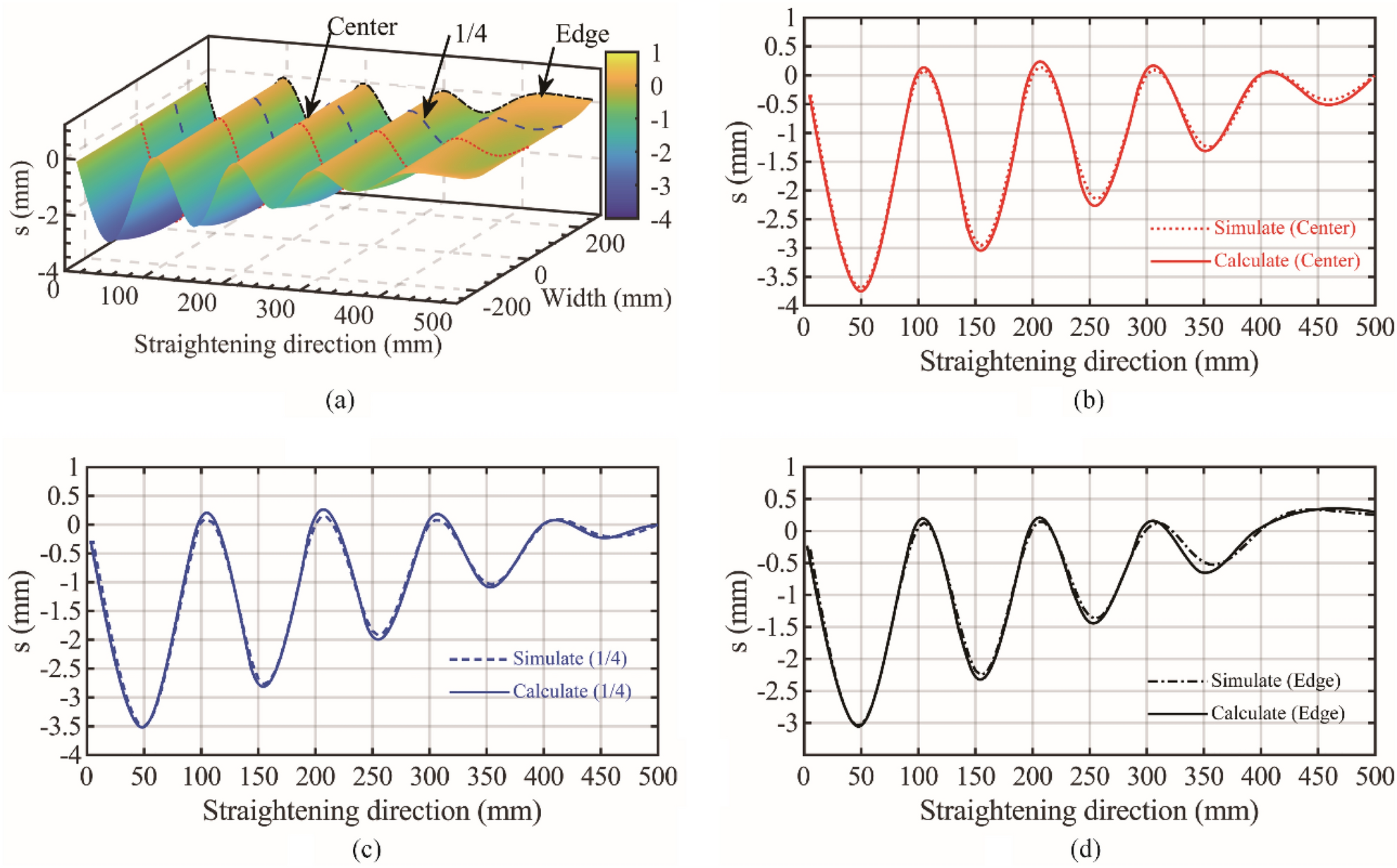

Straightening process simulation and calculation trajectory comparison. (a) Simulation result extraction. (b) Center contrast trajectory. (c) 1/4 contrast trajectory. (d) Edge contrast trajectory.
