Figure 1

From: Association of attenuated leptin signaling pathways with impaired cardiac function under prolonged high-altitude hypoxia

Figure 1

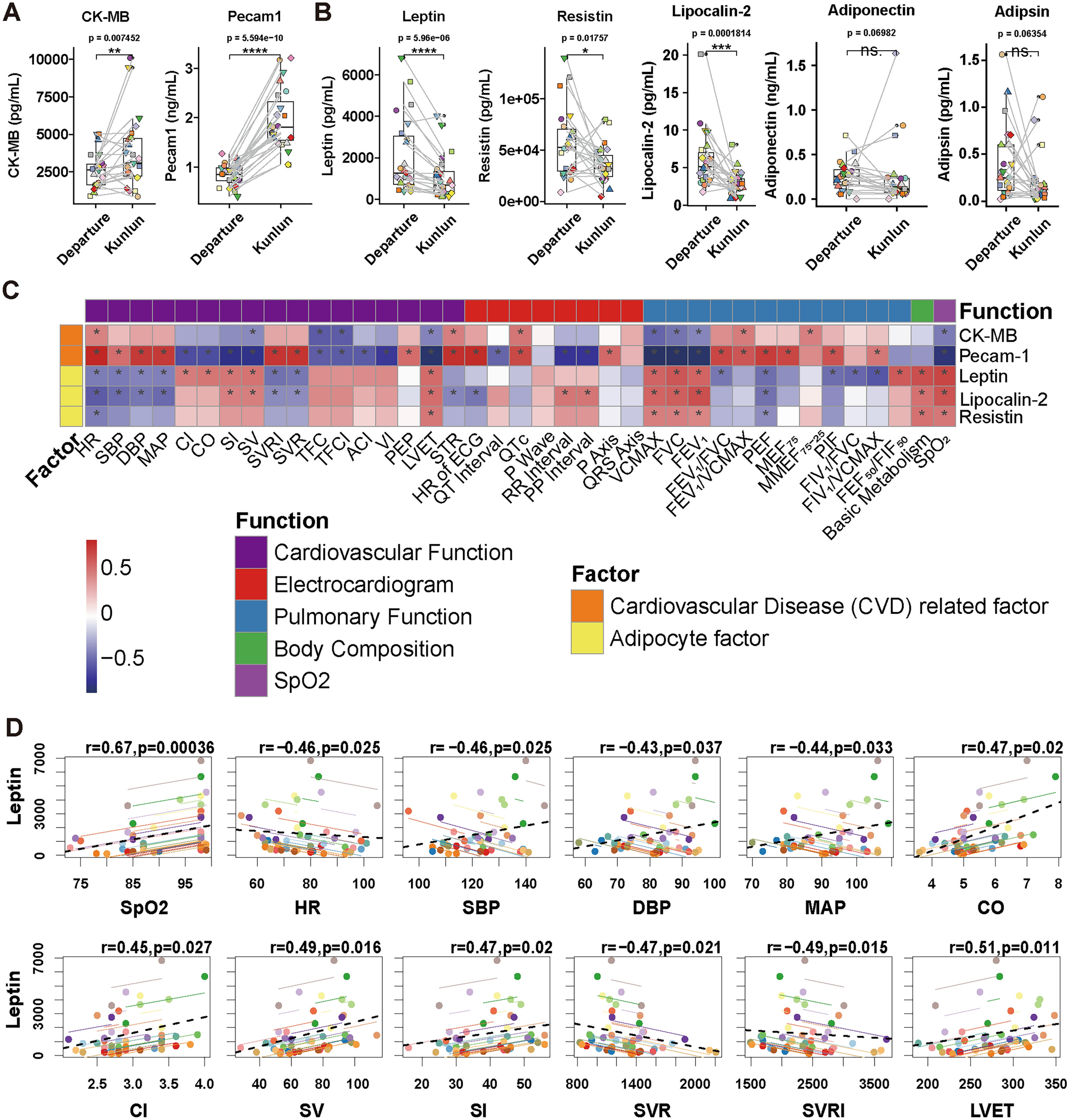

Alterations and correlation of cardiovascular risk factors and adipokines of the Kunlun Station expeditioners. (A) Plasma cardiovascular risk factors of expeditioners, including CK-MB and sPecam-1. (B) Plasma adipose/metabolic factor levels, including leptin, resistin, lipocalin-2, adiponectin, and adipsin of the expeditioners. (C) Heatmap shows correlations between plasma factors with altered indicators including cardiovascular function, cardiac conduction. (D) Correlation of plasma leptin with cardiovascular Indicators. n = 23. *p < 0.05 were considered significant (paired t-test or Wilcoxon signed-rank test). *p < 0.05 were considered significantly correlation (repeated measures correlation).
