Figure 19
From: Damage and reliability analysis of double-arch tunnel without a middle pilot tunnel under blast load

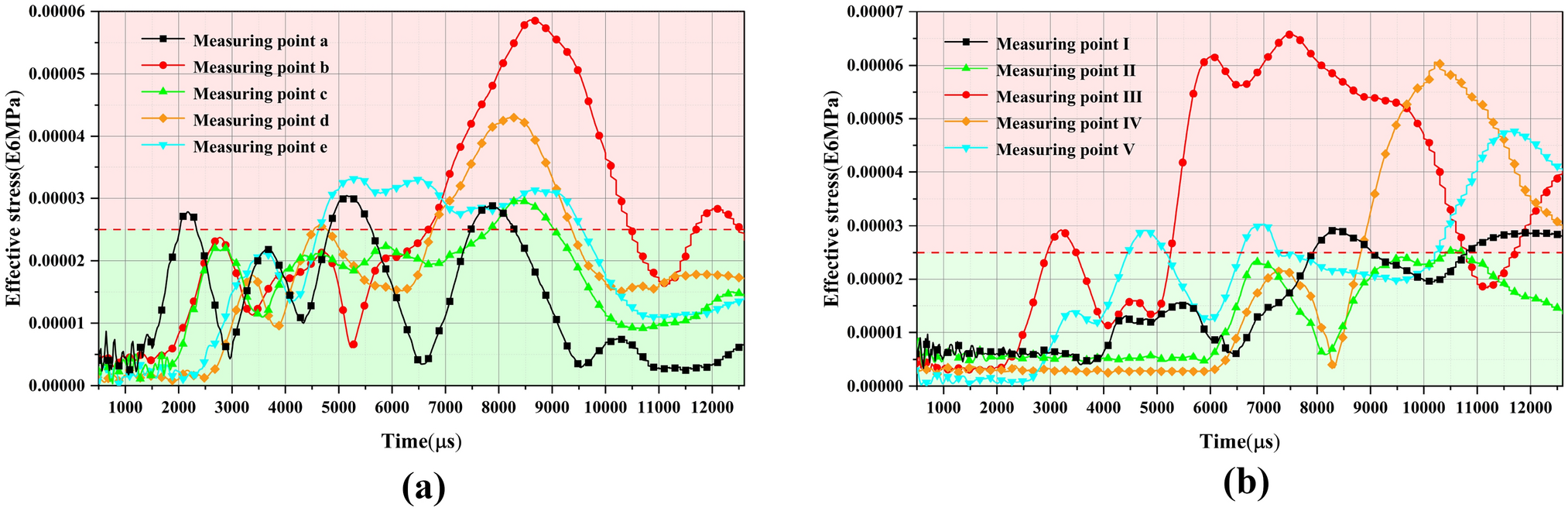

Calculation results of the effective stress at the measurement points of an initial support structure. (a) Effective stress at the first tunnel measurement point. (b) Effective stress at the following tunnel measurement point.
