Figure 27

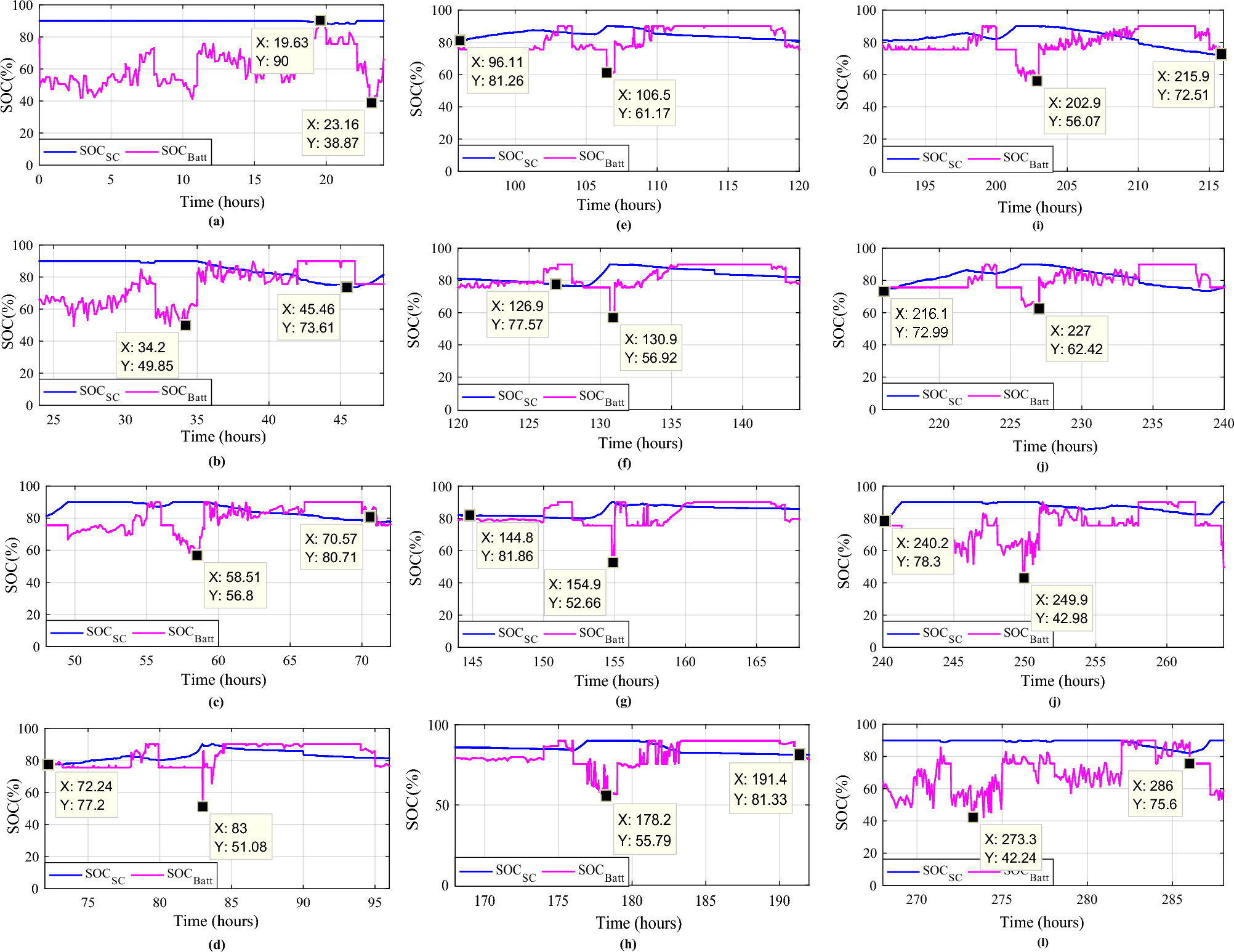

Battery and supercapacitors state of charge for the different profiles. (a) Profile 1. (b) Profile 2. (c) Profile 3. (d) Profile 4. (e) Profile 5. (f) Profile 6. (g) Profile 7. (h) Profile 8. (i) Profile 9. (j) Profile 10. (k) Profile 11. (l) Profile 12.
