Figure 1
From: Ecological inferences on invasive carp survival using hydrodynamics and egg drift models

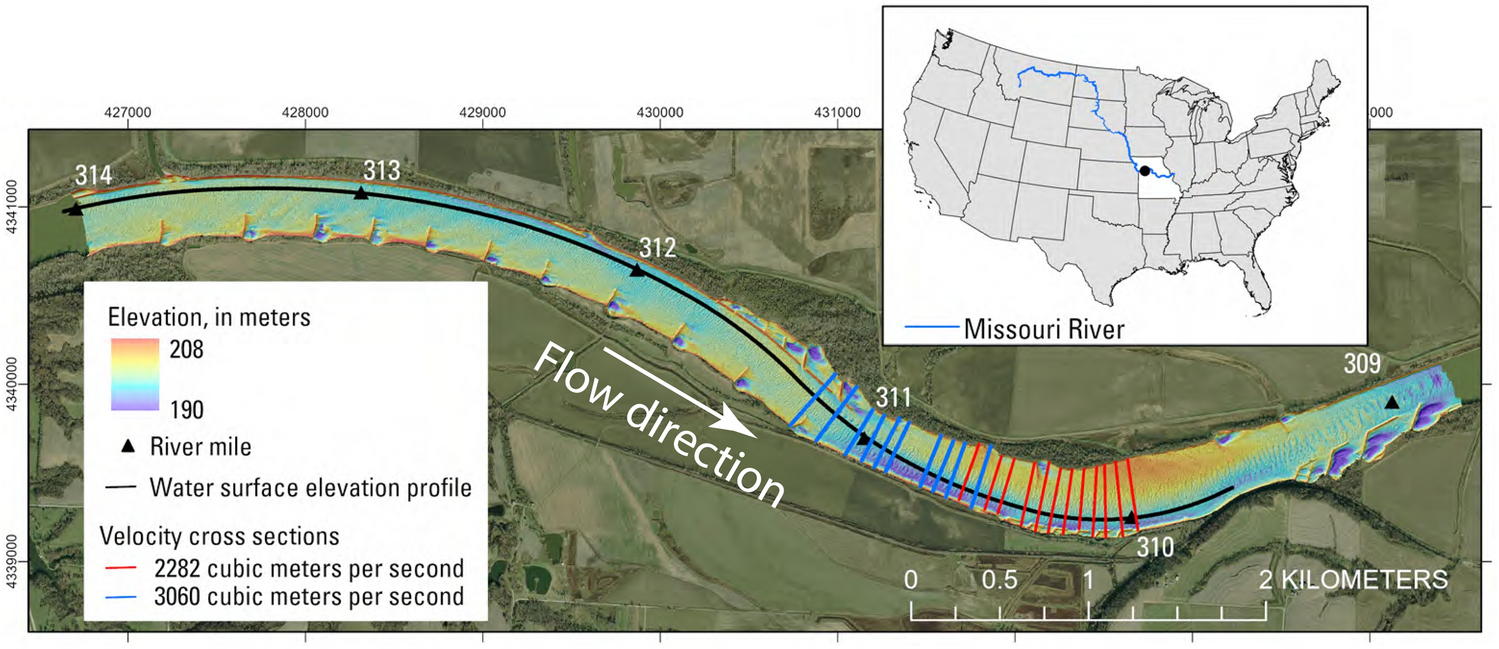

Bathymetry map of the study site in the Lower Missouri River. Black line represents the measurement of water surface elevation. Black triangles represent the river miles measured from the confluence with the Mississippi River near St. Louis, Missouri. Twelve red lines represent the cross sectional transects of velocity measurement at \(Q = 2282\) m\(^3\)/s. Ten blue lines represent the cross sectional transects of velocity measurement at \(Q = 3060\) m\(^3\)/s. Map was generated with ArcGIS Pro v. 3.2 https://www.esri.com/en-us/home. Basemap is U.S. Army Corps of Engineers Imagery, 2012. River miles are from the U.S. Army Corps of Engineers, 1960, https://www.nwk.usace.army.mil/Missions/Civil-Works/Navigation/.
