Figure 3
From: Ecological inferences on invasive carp survival using hydrodynamics and egg drift models

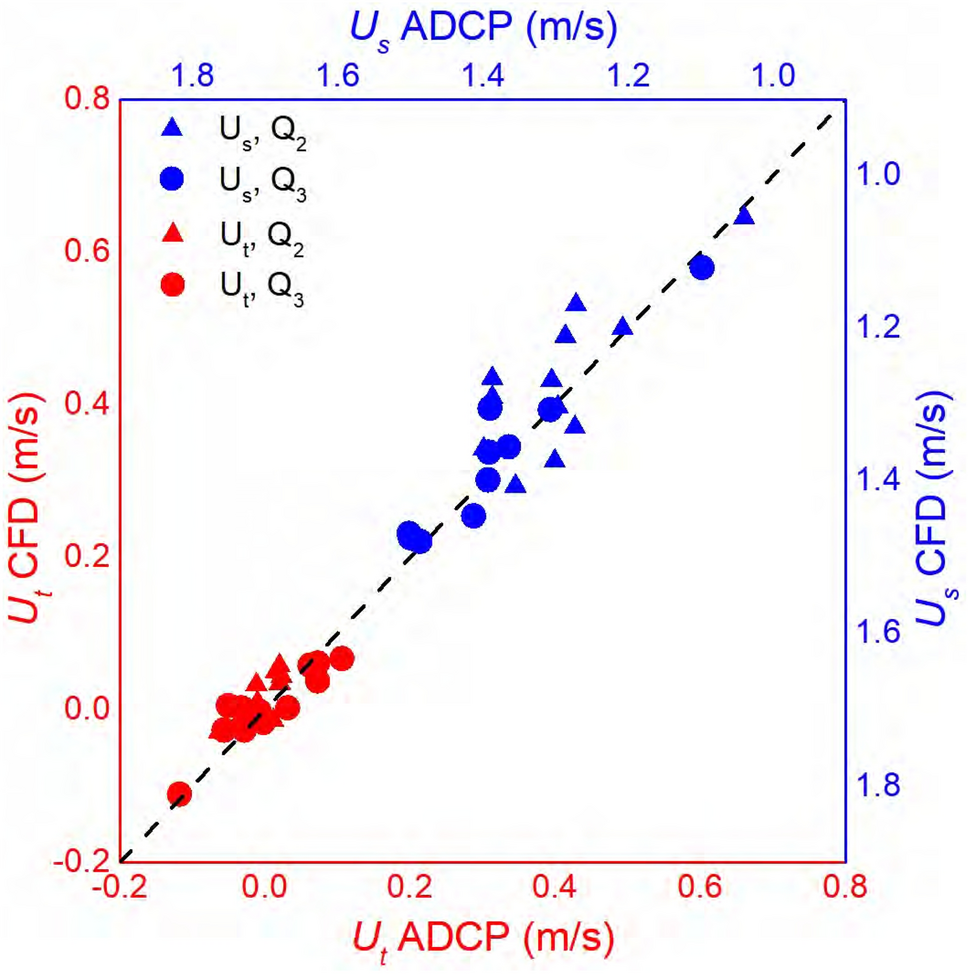

Comparison between computational fluid dynamics (CFD) modeled and acoustic Doppler current profiler (ADCP) measured velocities in the streamwise direction (\(U_s\)) and transverse direction (\(U_t\)) at 22 cross sections under the two surveyed conditions \(Q_2\) and \(Q_3\)33. The 1:1 dashed line represents perfect agreement.
