Figure 7
From: Ecological inferences on invasive carp survival using hydrodynamics and egg drift models

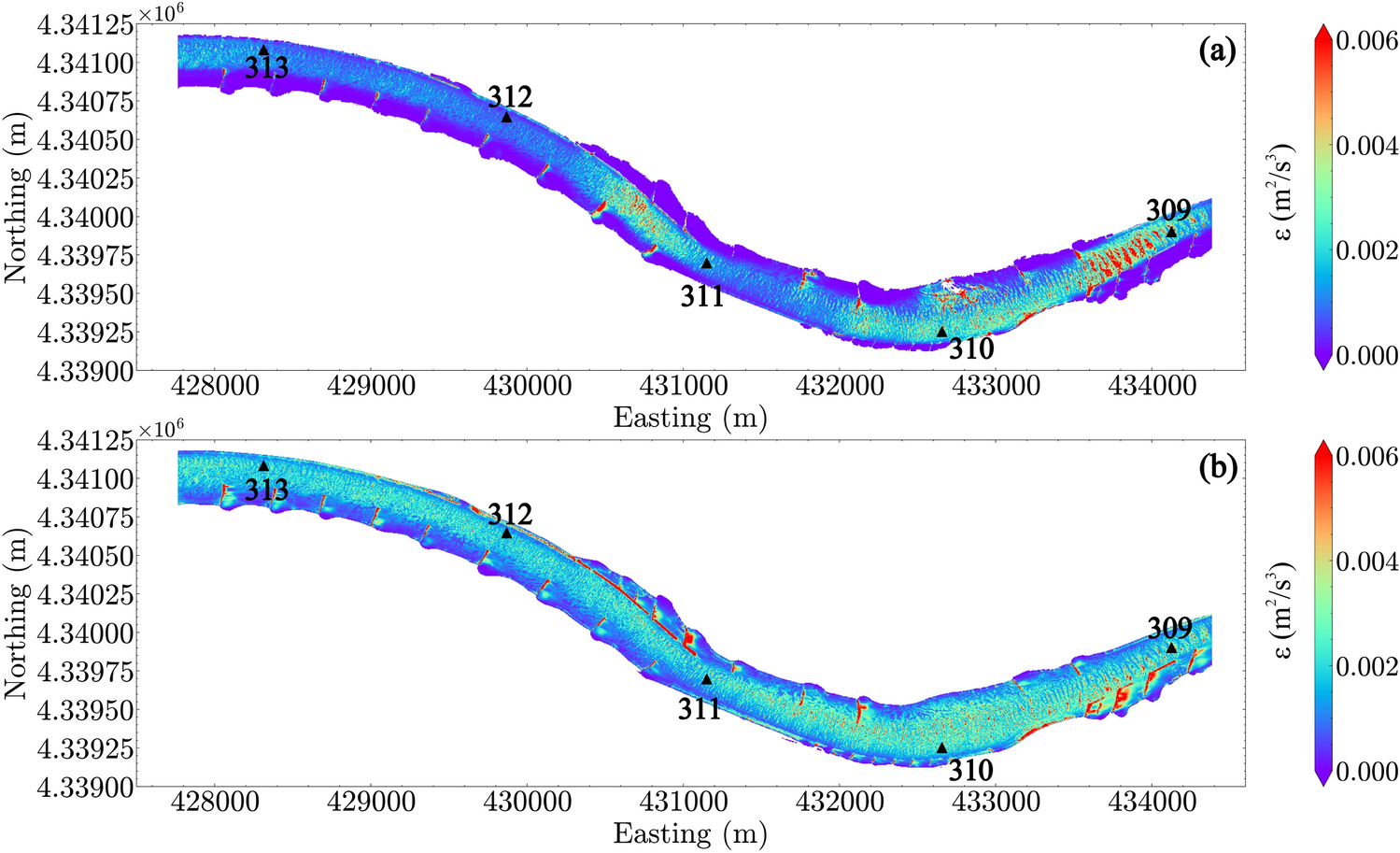

Depth-averaged turbulence dissipation rate: (a) \(Q_1\); (b) \(Q_4\). River miles 309–313 are indicated in the plot by black triangles.
