Figure 6
From: Single-shot frequency offset measurement with HASTE using the selective parity approach

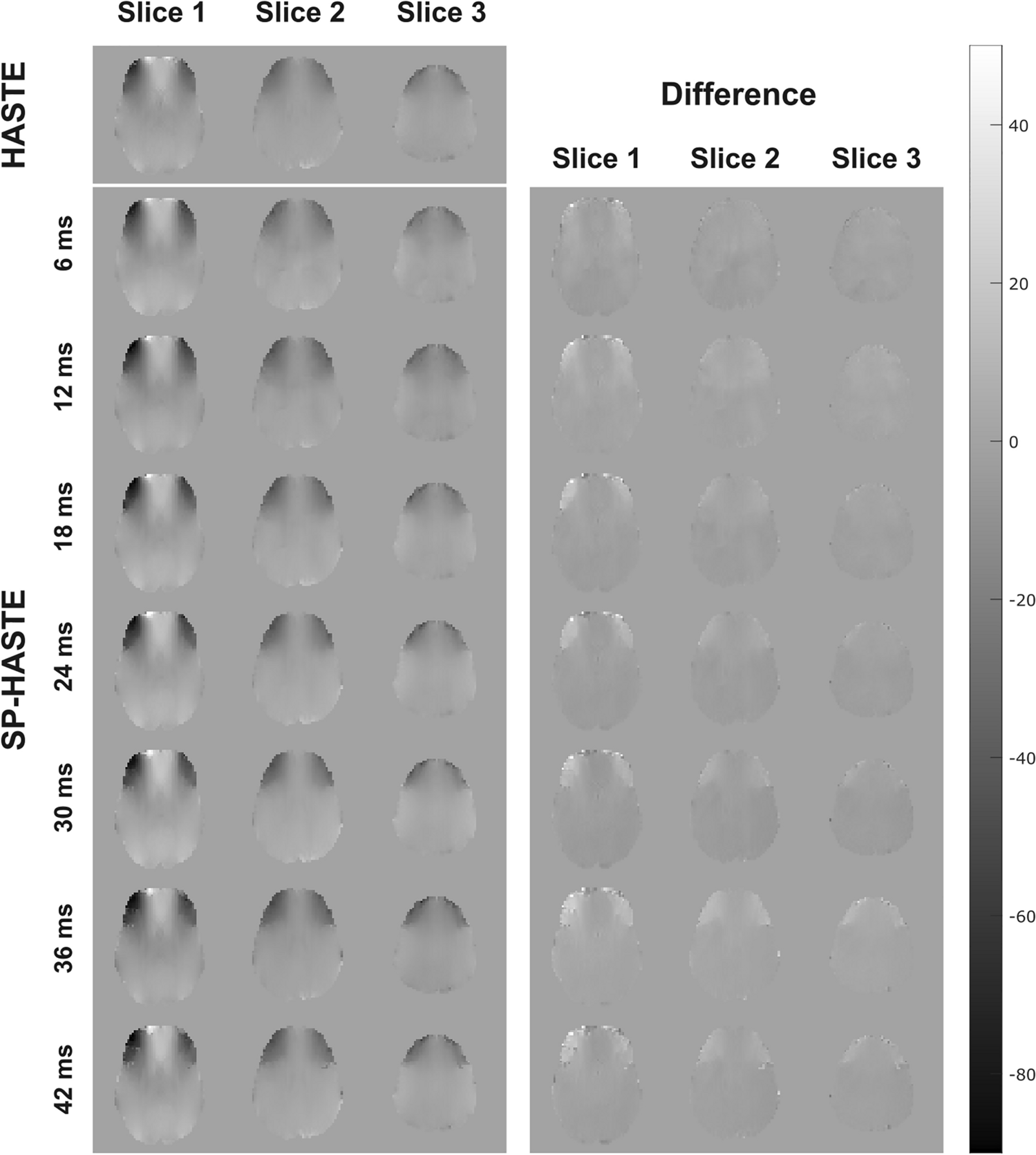

Left, frequency offset maps created with the HASTE (top) and single shot SP-HASTE (2nd row down) methods: FO maps from the SP-HASTE methods were calculated for different evolution times from one repetition. Grey scale units are expressed in Hz. In the right column the difference between the two is shown (HASTE-SP-HASTE).
