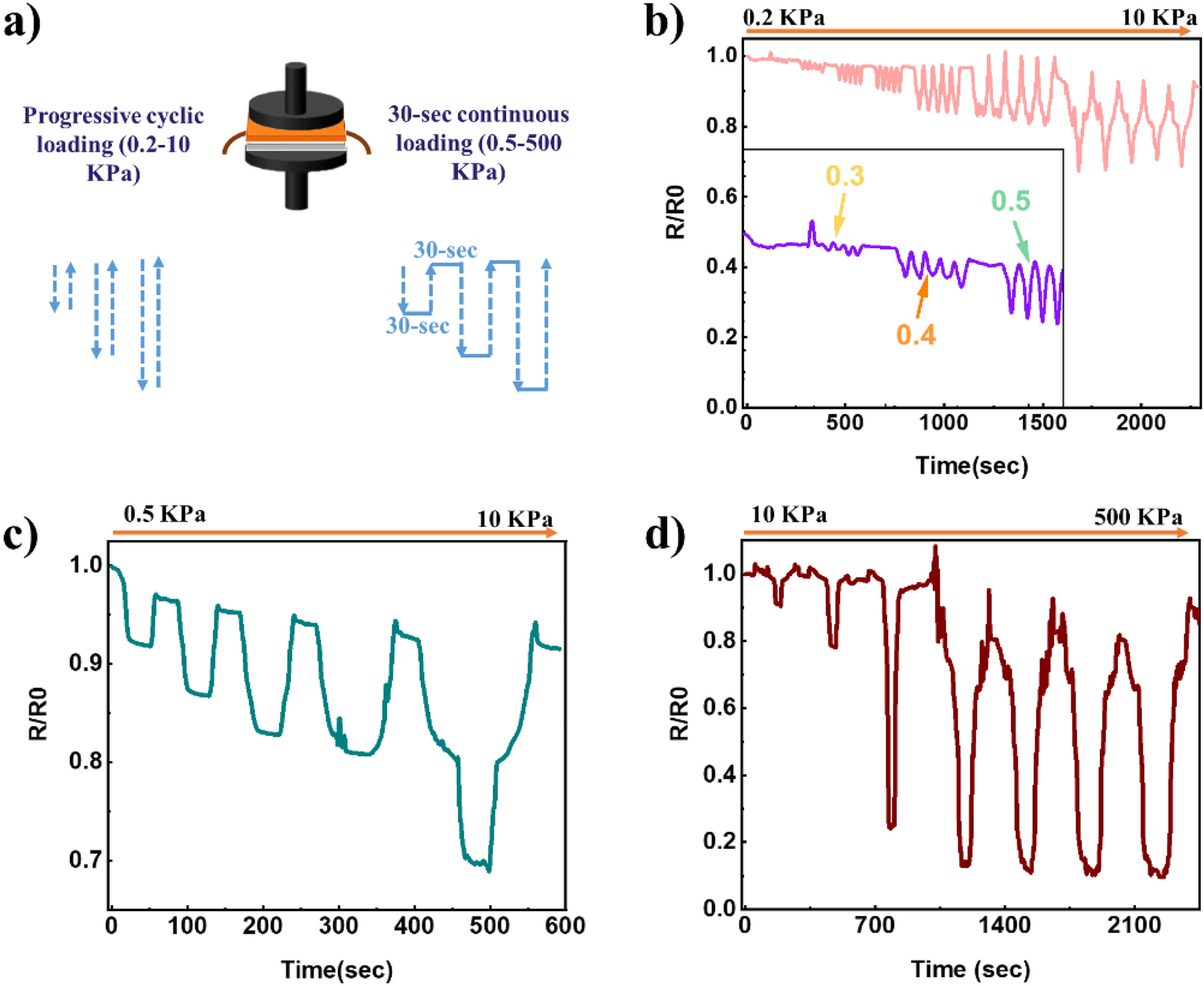

Figure 7
(a) Schematic representation of the progressive compression test. Sensor response during loading and unloading. (b) Cyclic low force load ranging from 0.2 to 10 kPa. (c) Step low force load ranging from 0.5 to 10 kPa. (d) Step high force load ranging from 10 to 500 kPa.
