Figure 3
From: Biodiversity patterns of the coral reef cryptobiota around the Arabian Peninsula

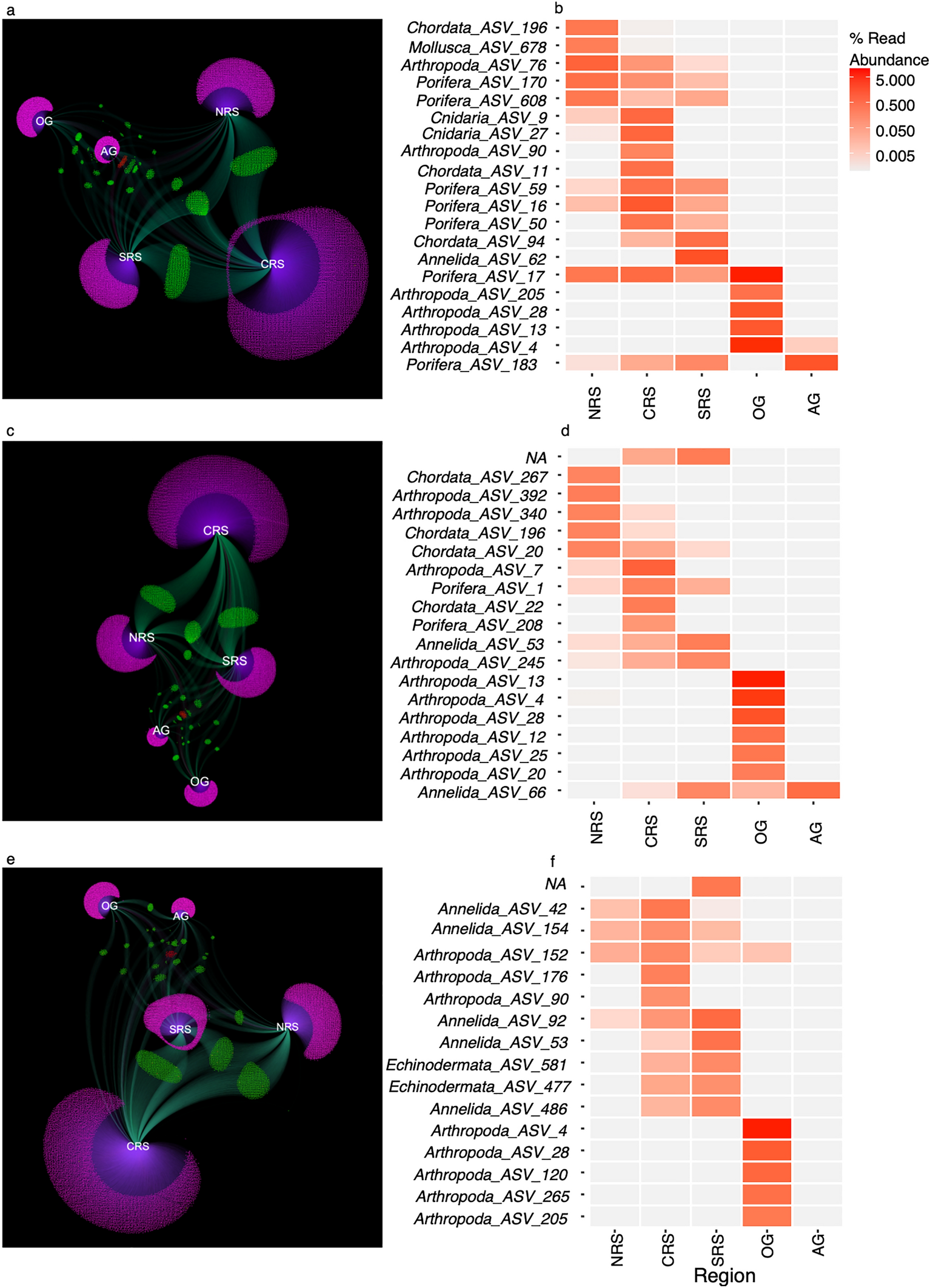

Network analysis for the shared ASVs amongst region and unique ASVs for a region for the sessile (A), 106–500 µm (C), and 500–2000 µm (E) fractions. Nodes for the regions were coloured blue. Purple notes represent ASVs unique to region while green ASVs indicate those that are shared between 2 and 4 regions while red nodes are ASVs shared with amongst all regions. ASVs determined as indicators as depicted for the sessile (B), 106–500 µm (D) and 500 – 2000 µm (F) fractions. NRS = Northern Red Sea; CRS = Central Red Sea; SRS = Southern Red Sea; OG = Gulf of Oman and AG = Arabian (Persian) Gulf. ASVs with an average contribution of less than 0.0001% were removed for visualization purposes.
