Figure 6
From: A finite element model for predicting impact-induced damage to a skin simulant

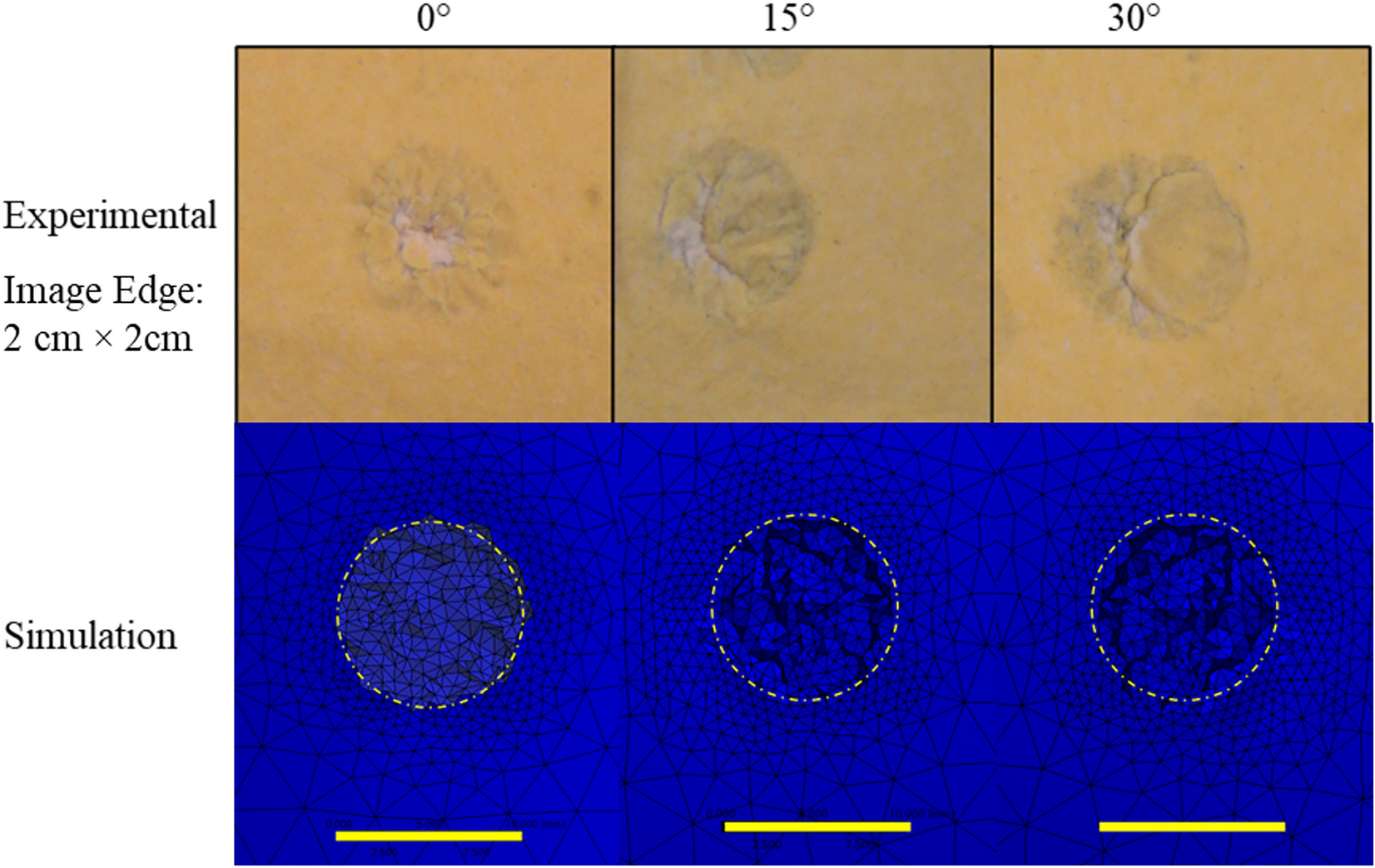

Nature of tear/damage occurring on the chamois leather following the impact at 4 J impact energy and different orientations after experimental testing in comparison to silicone damage during simulation of 4 J impact at 0°, 15° and 30°. 10 cm reference line and 10 mm diameter circle provided. (The difference in colouring is due to lighting orientations in Ansys©).
