Figure 6
From: Assessing the consequences of recent climate change on World Heritage sites in South Greenland

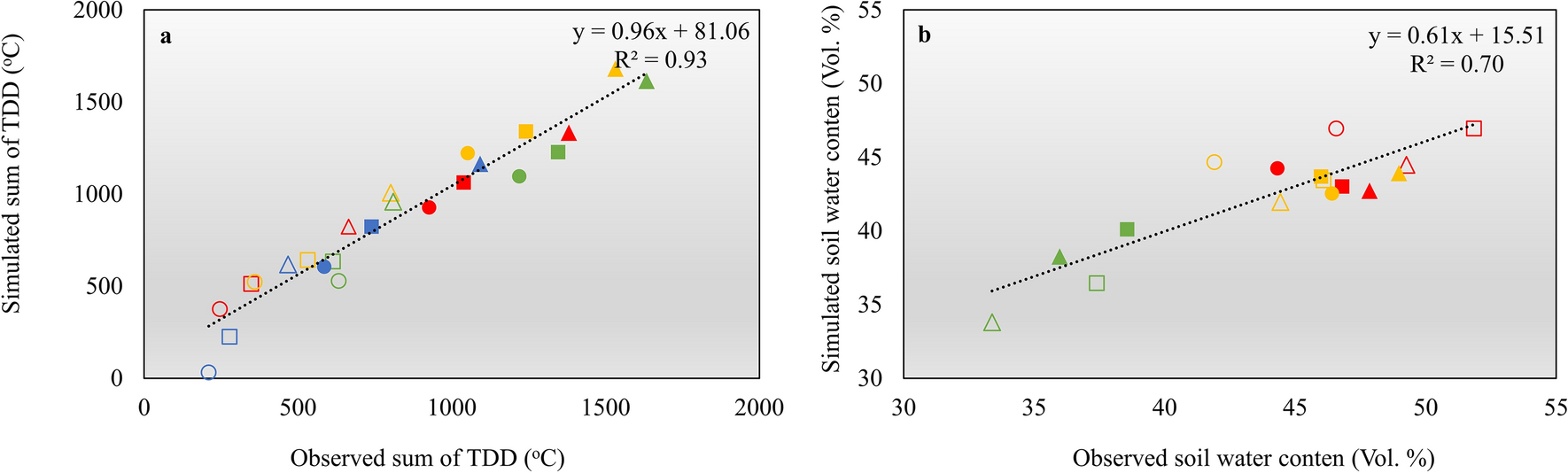

Linear regressions between simulated and observed data for the sites Kangermiutsiat (blue), Qaqortukulooq (green), Igaliku (yellow) and Qassiarsuk (red. (a) Observed versus modelled sum of thawing degree days (TDD). (b) mean simulated and mean observed soil water contents. Results are shown for 0.05 m depth (triangles), 0.25 m depth (squares) and 0.50 m depth (circles). Filled symbols represent values for the frost-free period during the calibration period from 1. January 2022 to 31. December 2022 and open symbols for the frost-free period during the test period from 1. January 2023 to 30. July 2023.
