Figure 4

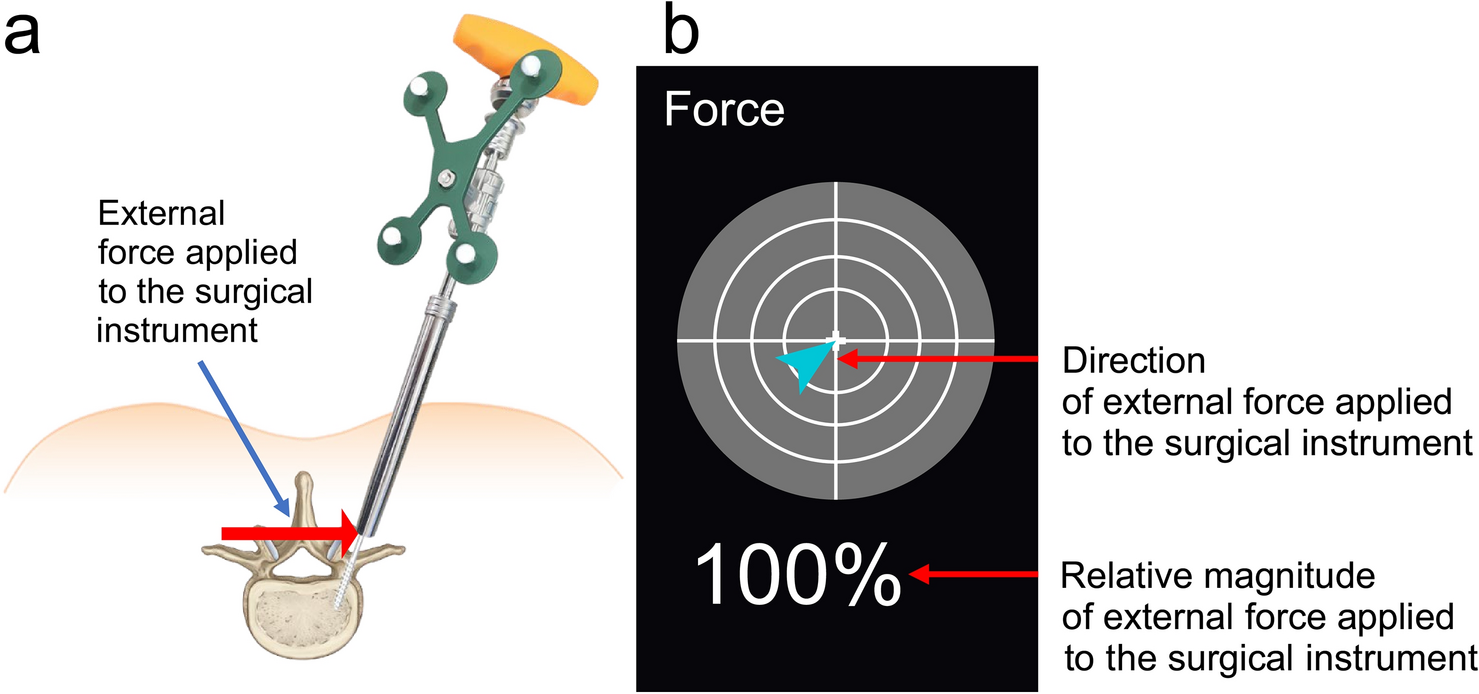

Graphical user interface (GUI) for direction and force during robot-assisted posterior cervical pedicle screw insertion. (a) Example of a situation where an external force is applied to the cervical pedicle screw instrument. (b) GUI portraying the direction of the external force applied to the instrument and the relative magnitude of force.
