Figure 6
From: On-chip flow cytometer using integrated photonics for the detection of human leukocytes

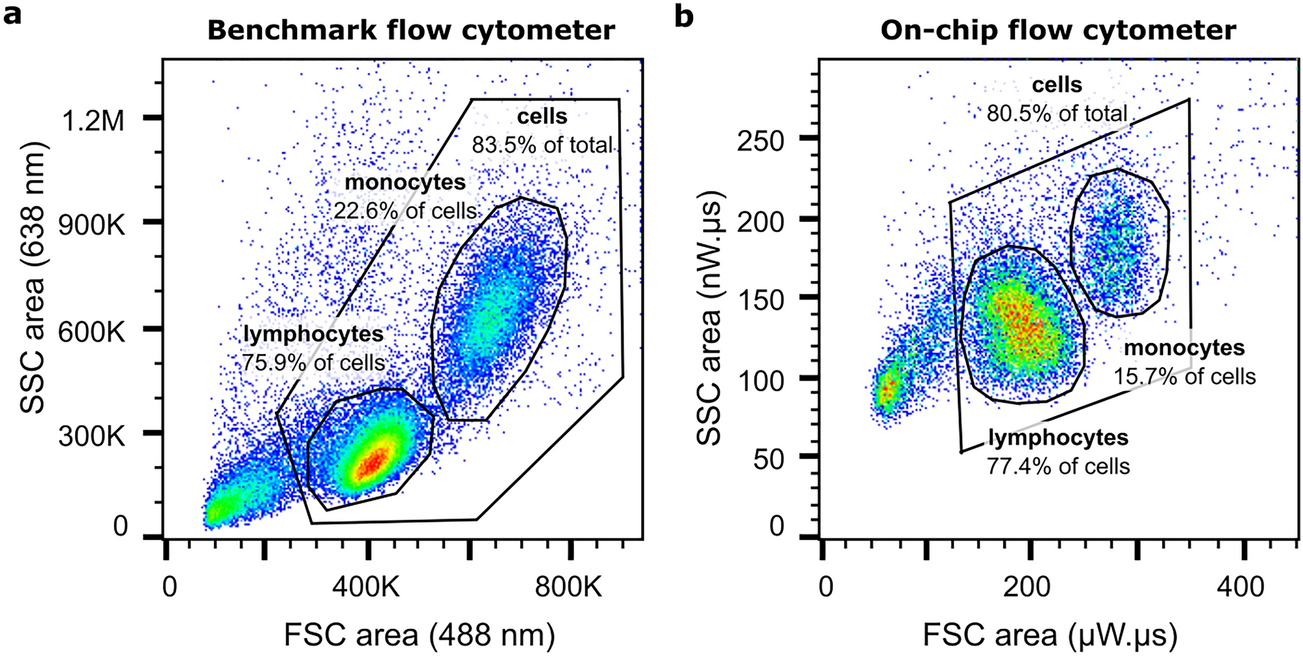

Full PBMC scatter plots on-chip and on a benchmark flow cytometer. Scatter plots of a full PBMC sample measured on (a) a benchmark flow cytometer (60,084 events) and (b) the on-chip flow cytometer (AOCFSC of 0° and AOCSSC of 50°) (19,168 events). For each scatter plot, the total cell population is gated, as well as the monocyte and lymphocyte fractions therein.
