Figure 9

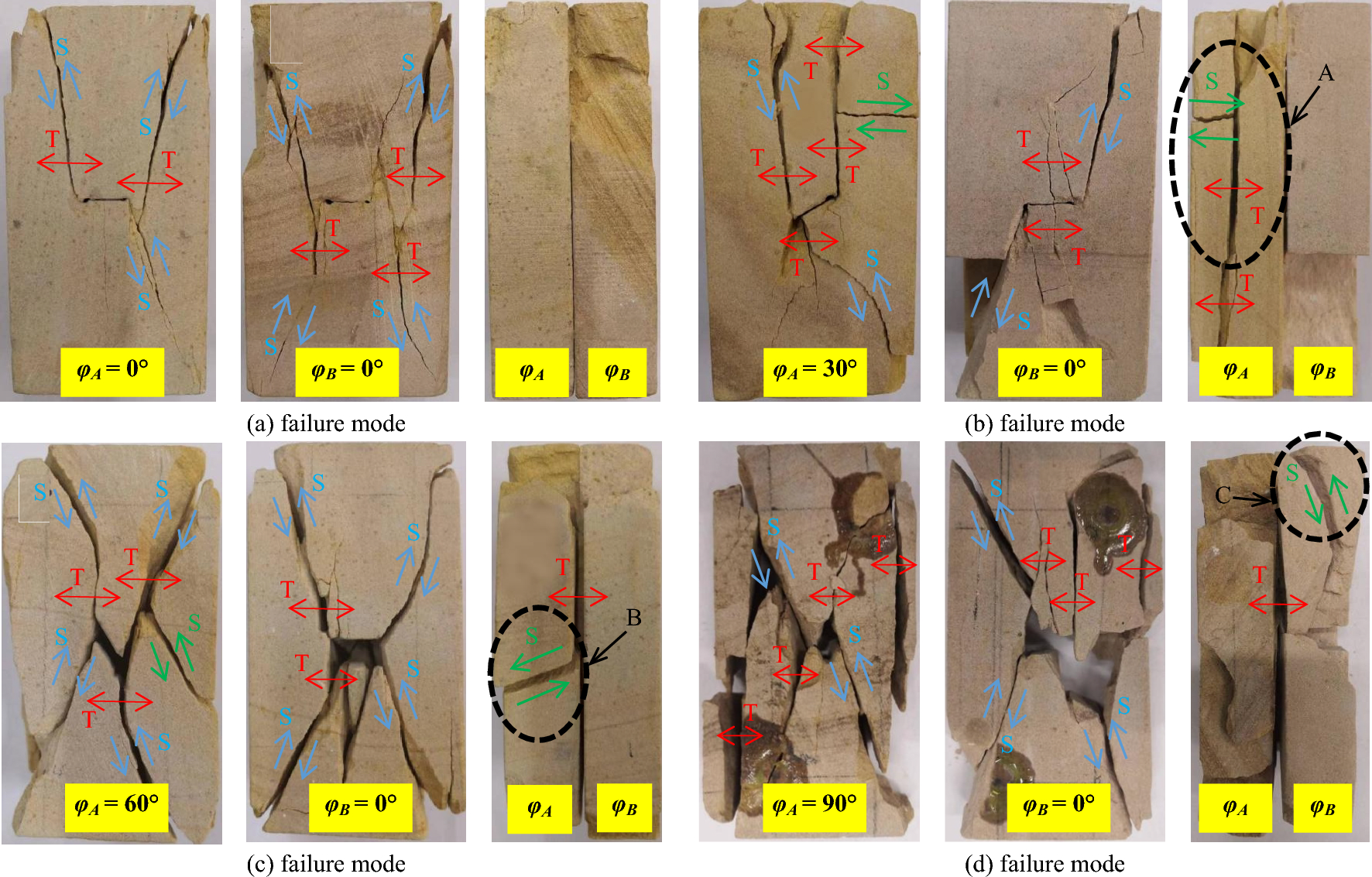

Rupture modes of sandstone specimens with the two sets of cross-persistent joints for different angles: (a) φA = 0°, φB = 0°; (b) φA = 30°, φB = 0°; (c) φA = 60°, φB = 0°; (d) φA = 90°, φB = 0°.
Figure 9 | Scientific Reports
Rupture modes of sandstone specimens with the two sets of cross-persistent joints for different angles: (a) φA = 0°, φB = 0°; (b) φA = 30°, φB = 0°; (c) φA = 60°, φB = 0°; (d) φA = 90°, φB = 0°.
