Figure 3
From: EquiCity game: a mathematical serious game for participatory design of spatial configurations

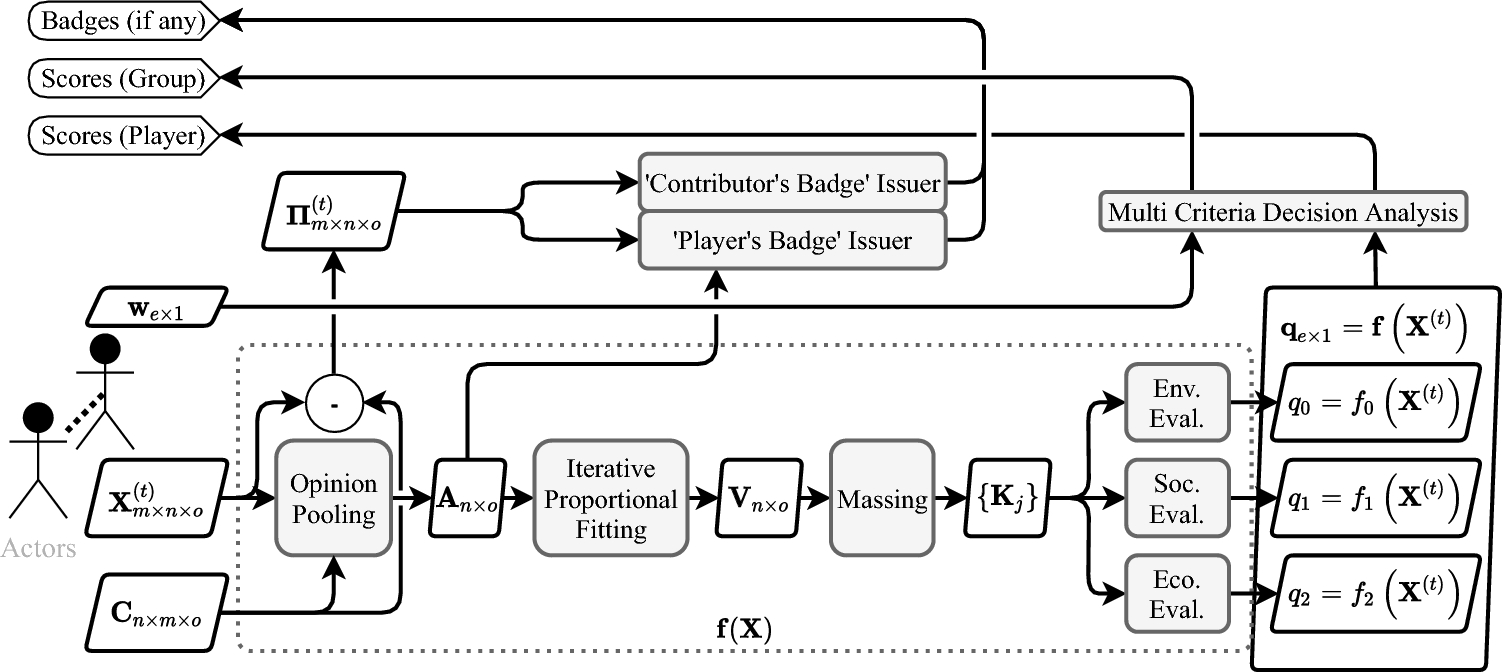

Illustrated formulation of the problem as a gamified negotiation problem, cf. a more detailed schema and an alternative formulation as a multi-objective optimization in the Supplementary Information.
