Figure 7
From: Microscopic behavior of nano-water droplets on a silica glass surface

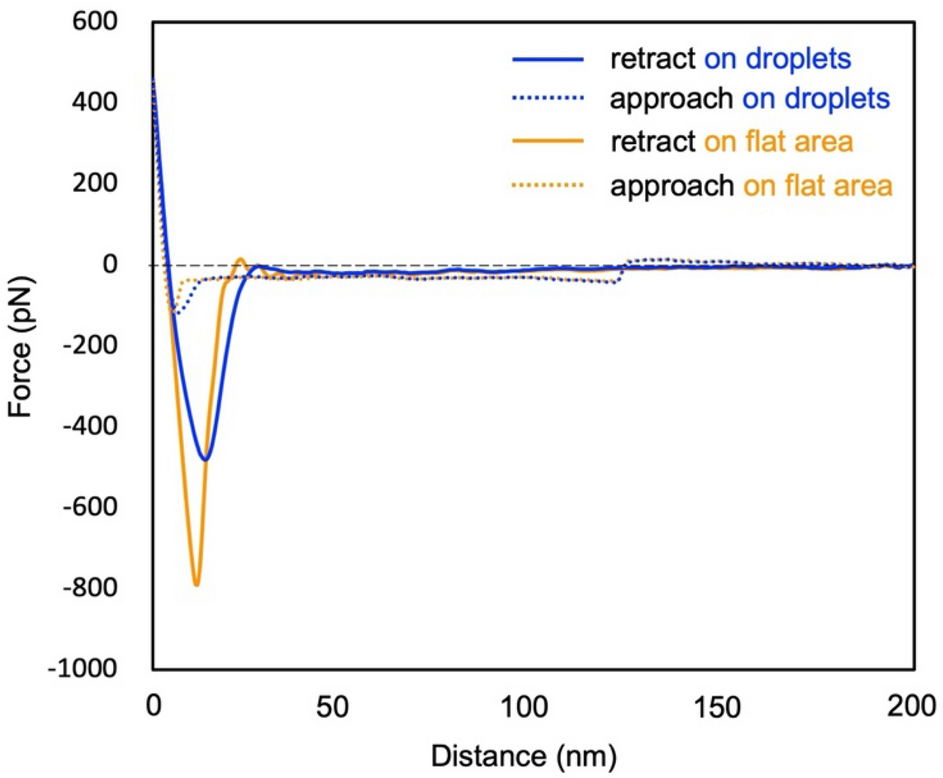

Force curves obtained from peak force tapping measurement at 80% RH. The average of 10 force curves acquired on nano water droplets (blue) and on flat area (orange), respectively. The dotted curves and the solid curves represent approach and retract curves, respectively.
