Figure 4
From: The stress-responsive cytotoxic effect of diesel exhaust particles on lymphatic endothelial cells

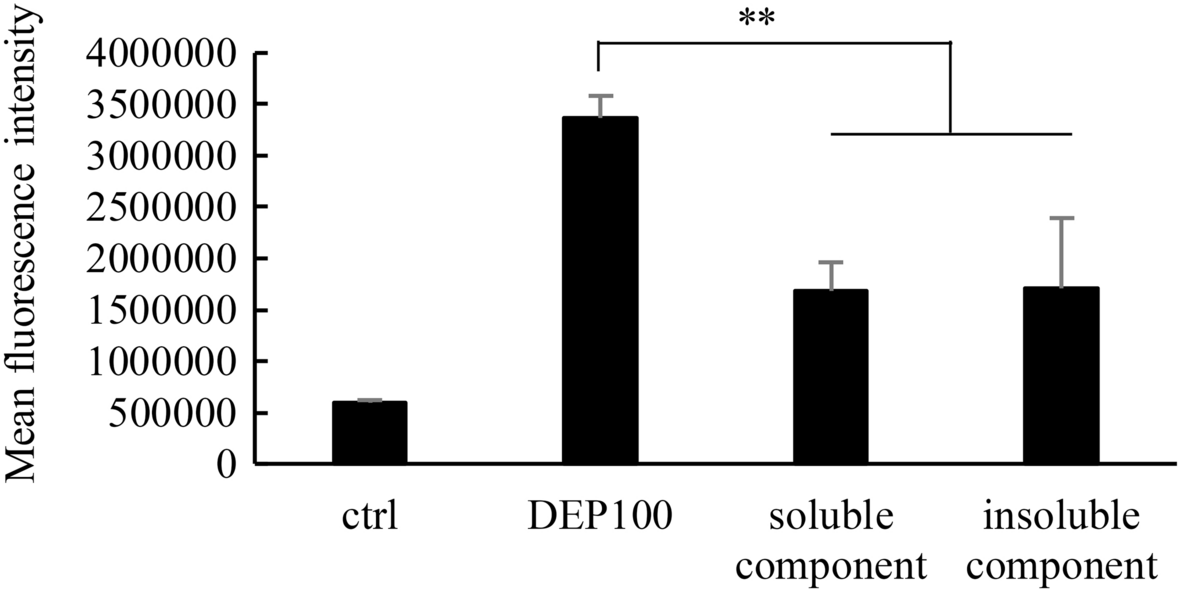

ROS generated by soluble/insoluble DEP components. Cell viabilities were measured following exposed to either soluble or insoluble components of DEPs for 6 h. The exposed concentrations of both soluble and insoluble components of DEPs were adjusted to an equivalent of 100 μg/mL of DEPs. ANOVA was conducted, followed by a Tukey’s HSD test (vs. DEP 100 μg/mL). *p < 0.05, **p < 0.01 (n = 3). Data are reported as the mean ± SD.
