Figure 2
From: Computational study of diffraction image formation from XFEL irradiated single ribosome molecule

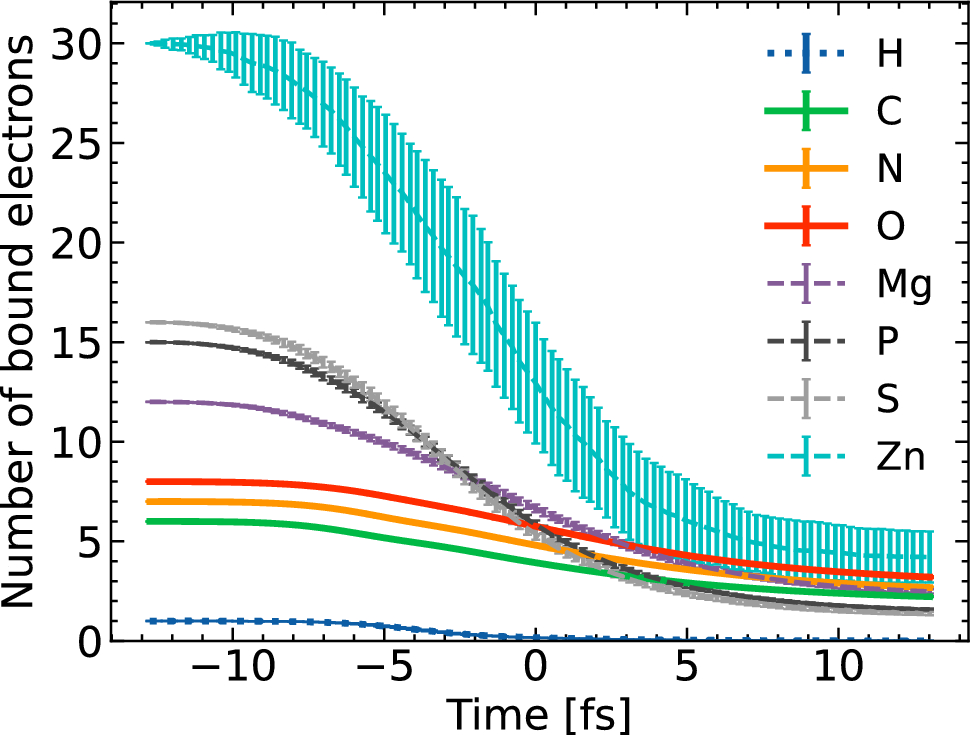

Average number of bound electrons per atom as a function of time calculated for various atomic species within the ribosome molecule. The average was taken from 100 XMDYN simulations. The average over the SASE pulses employed is peaked at 0 fs.
