Figure 6
From: Computational study of diffraction image formation from XFEL irradiated single ribosome molecule

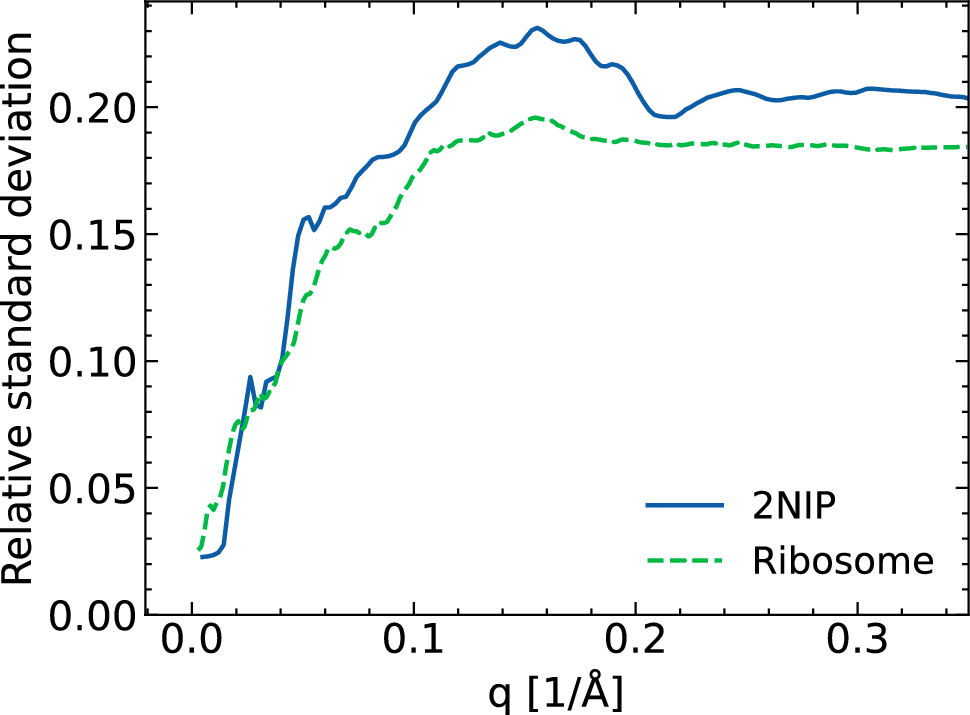

The relative standard deviation of the intensity signal as a function of q for 2NIP and ribosome molecules. It was calculated from 100 XMDYN realizations for both molecules.
