Figure 8
From: Computational study of diffraction image formation from XFEL irradiated single ribosome molecule

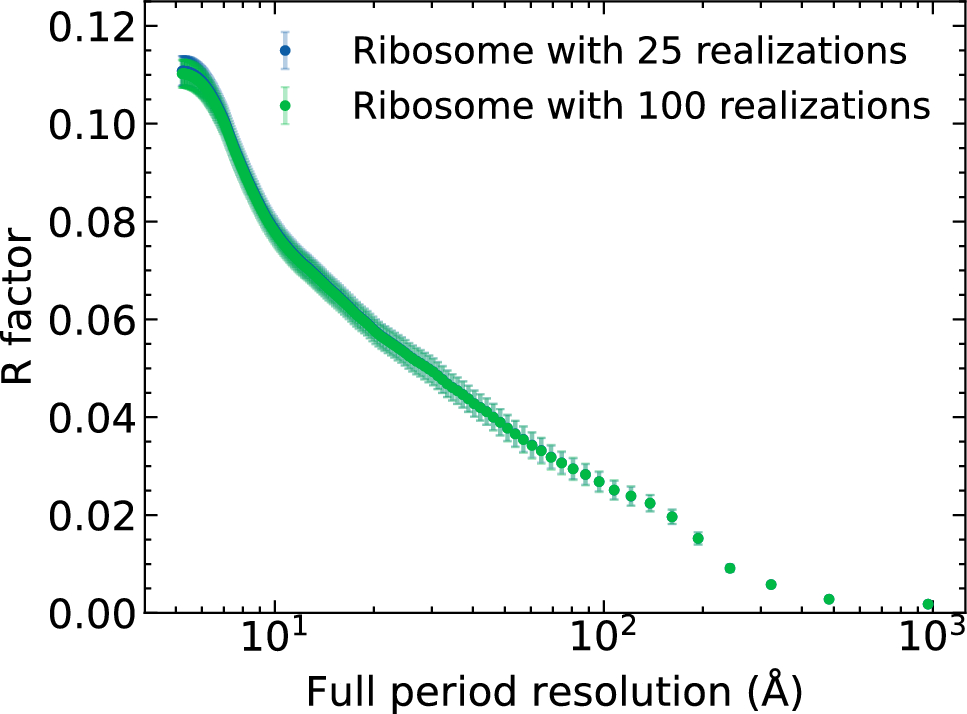

R-factor as a function of full-period resolution. It measures the degradation of diffraction image quality with respect to the diffraction image from undamaged ribosome molecule. It was calculated with: (i) all 100 simulated MD realizations, and (ii) with 25 realizations randomly selected.
