From: Fluorescence shadow imaging of Hypsibius exemplaris reveals morphological differences between sucrose- and CaCl2-induced osmobiotes

Figure 2

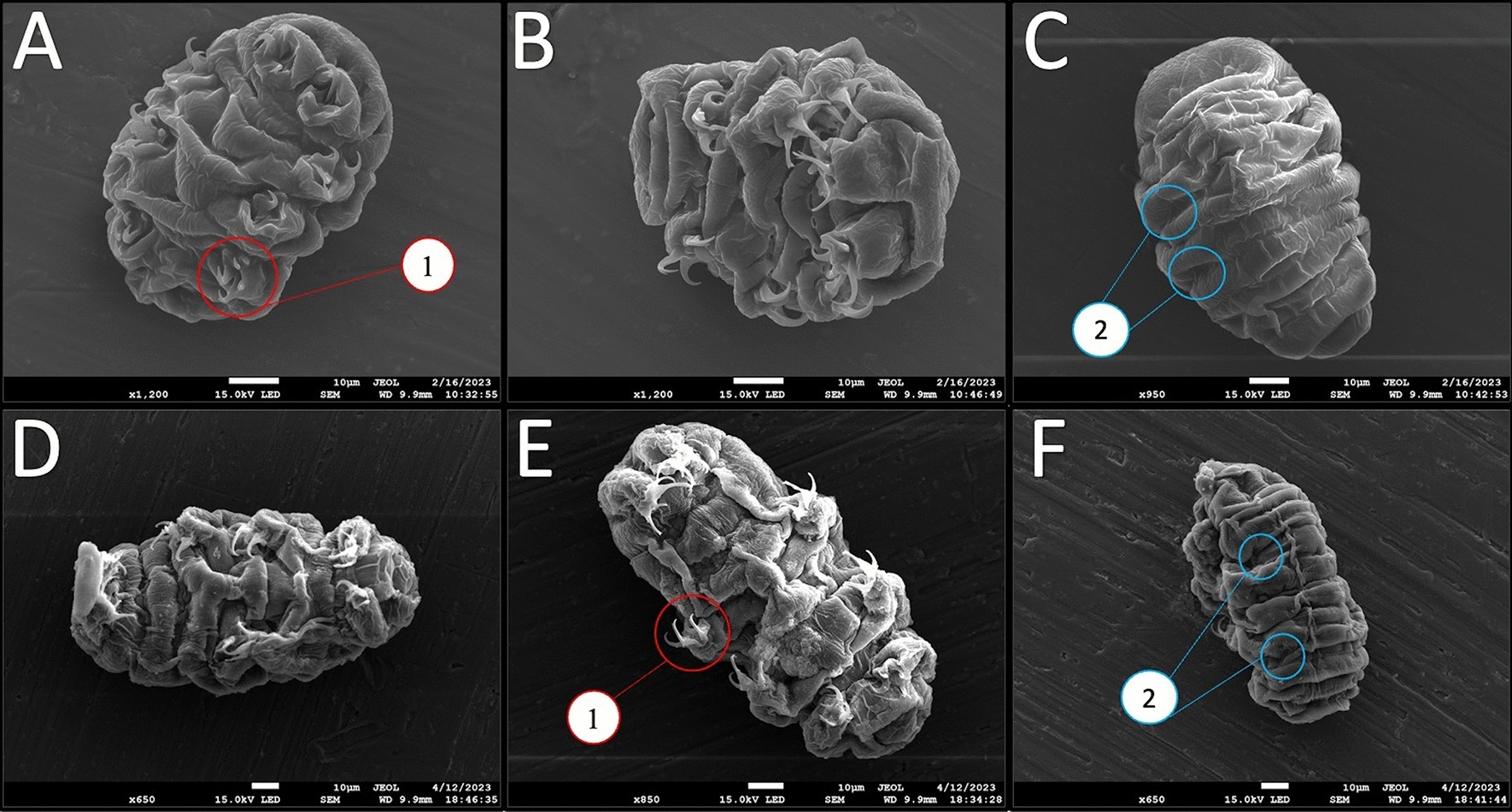

Representative SEM Micrographs Obtained For Sucrose- and CaCl2-Induced Tuns. (A)–(C) Sucrose-induced tuns; (D)–(F) CaCl2-induced tuns. Panels (A/B) and (D/E) show ventral views of the specimens while panels C/F show dorsal views. Two notable features are highlighted by colored/numbered circles. Feature 1 (red) highlights the positioning of the limbs while feature 2 (blue) highlights the differences in the cuticle folds.
