Figure 7
From: Aloe-inspired eco-friendly synthesis of Ag/ZnO heterostructures: boosting photocatalytic potential

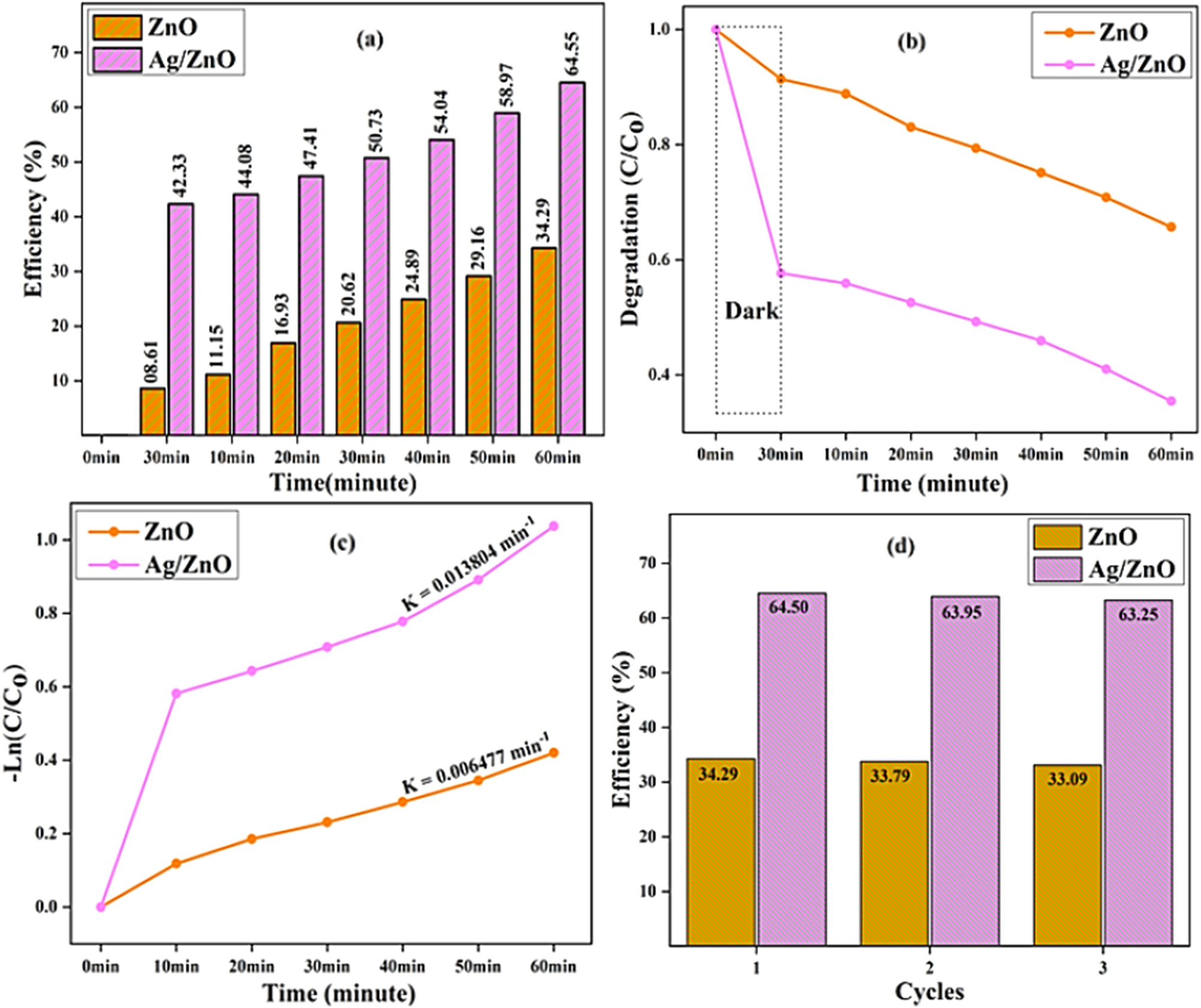

(a) Irradiation time verses efficiency (%); (b) degradation (\(C/C_{o}\)) over time; (c)—Ln (\(C/C_{o}\)) versus irradiation time; (d) % efficiency verses cycle graphs of ZnO and Ag/ZnO (1:1) heterostructures.
