From: Impaired signaling pathways on Berardinelli–Seip congenital lipodystrophy macrophages during Leishmania infantum infection

Figure 2

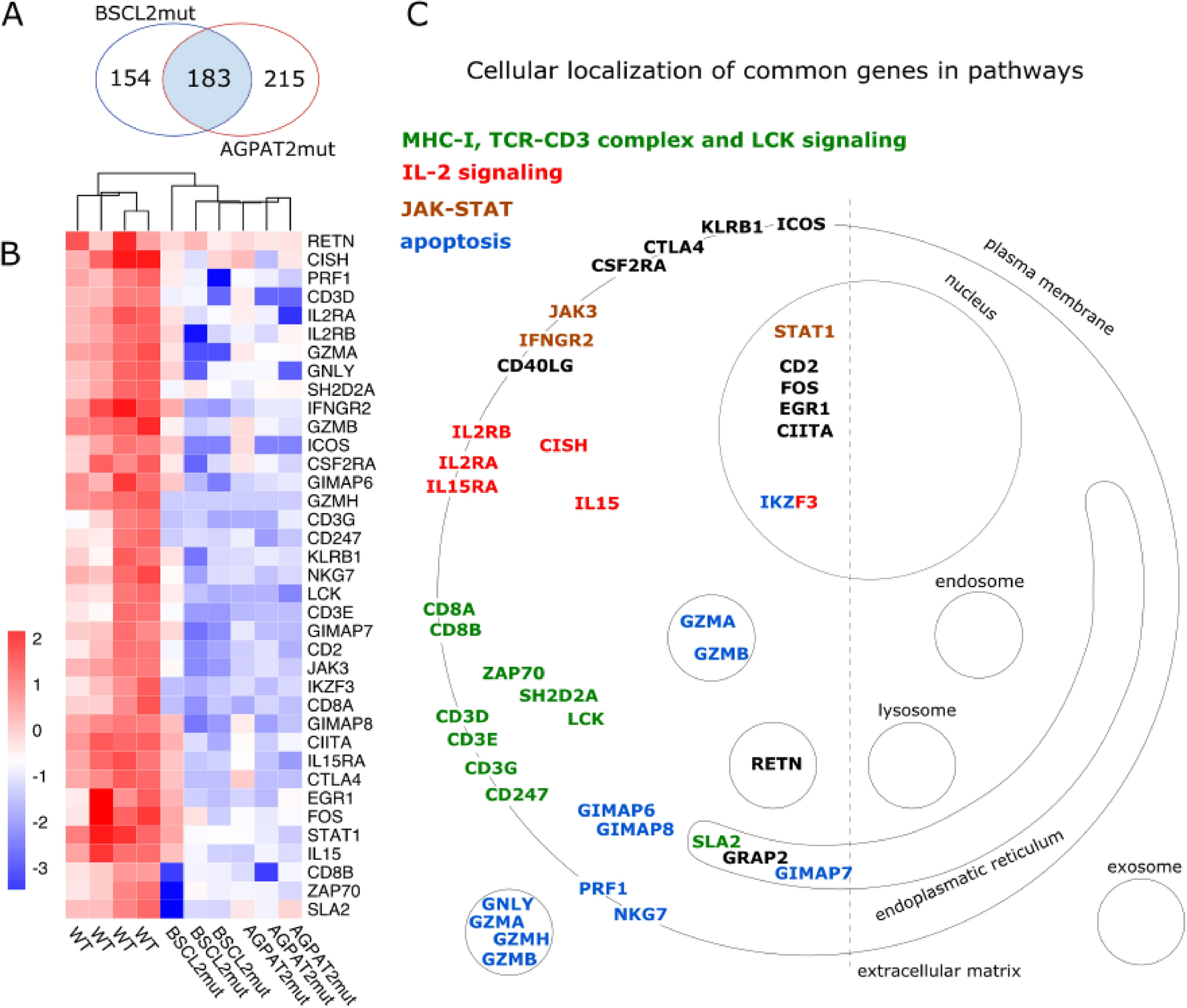

DEGs from AGPAT2mut and BSCL2mut when compared to WT in response to L. infantum infection. (A) Venn diagram of infected macrophages at two different comparisons. (B) Heatmap of common DEGs from AGPAT2mut and BSCL2mut vs. WT comparisons, selected by authors. All genes presented were downregulated in the both CGL types when compared to WT, and (C) Putative cellular localization of the same genes in (B).
