Figure 5

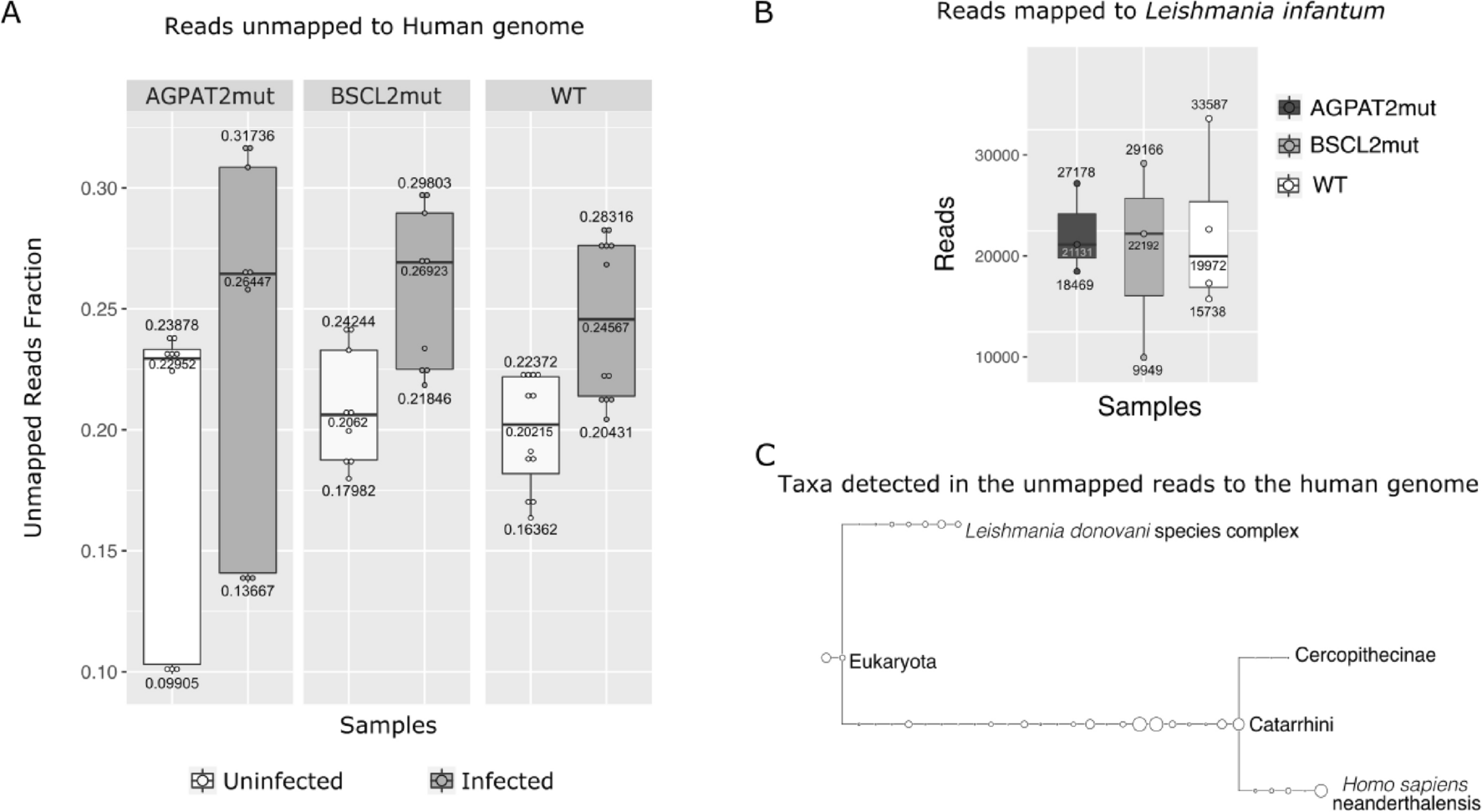

Metatranscriptomics of biological groups. Infection experiments were controlled for a parasite-host cell ratio of 5:1. The quantitative parasite load was not quantified. (A) Reads that could not be aligned to the Human genome, for all groups. (B) Reads that could be aligned with the Leishmania infantum genome. (C) Overview of the taxonomy identified for reads not aligned to the human genome. Taxonomy was obtained via BLASTx in Megan6, using the LCA (Lowest common ancestor) algorithm. The graphical representation was made using the Compute core biome function, the threshold of 50%. The proportion of the nodes is according to the default display mode (sqrt).
