Figure 8

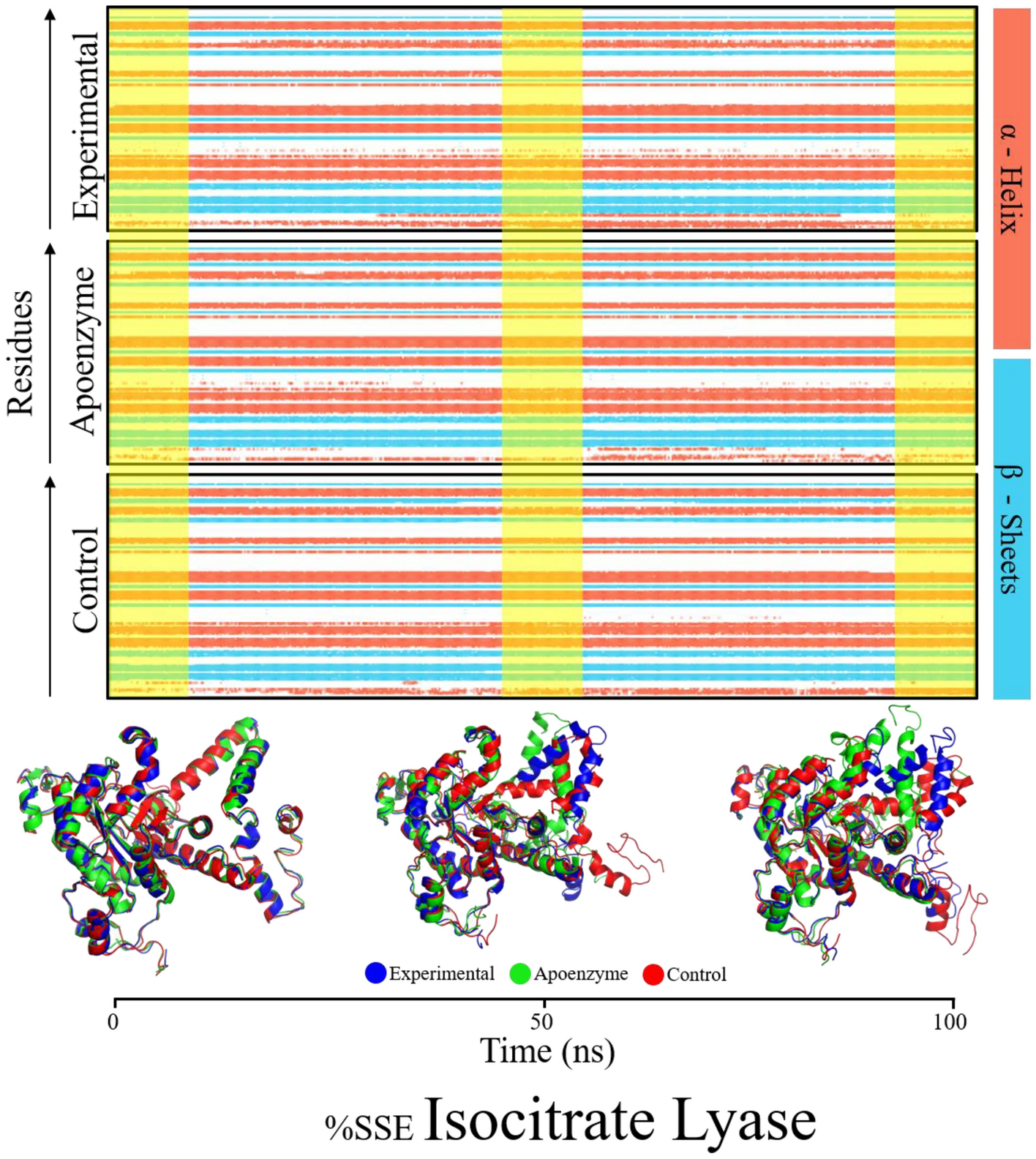

%age secondary structure timeline of isocitrate lyase in three systems, namely Apoenzyme (apoenzyme system), Control (isocitrate lyase-ZINC2111081 complex) and Dihydroergotamine (isocitrate lyase-dihydroergotamine complex).
