Figure 4
From: MiR-21-5p modulates LPS-induced acute injury in alveolar epithelial cells by targeting SLC16A10

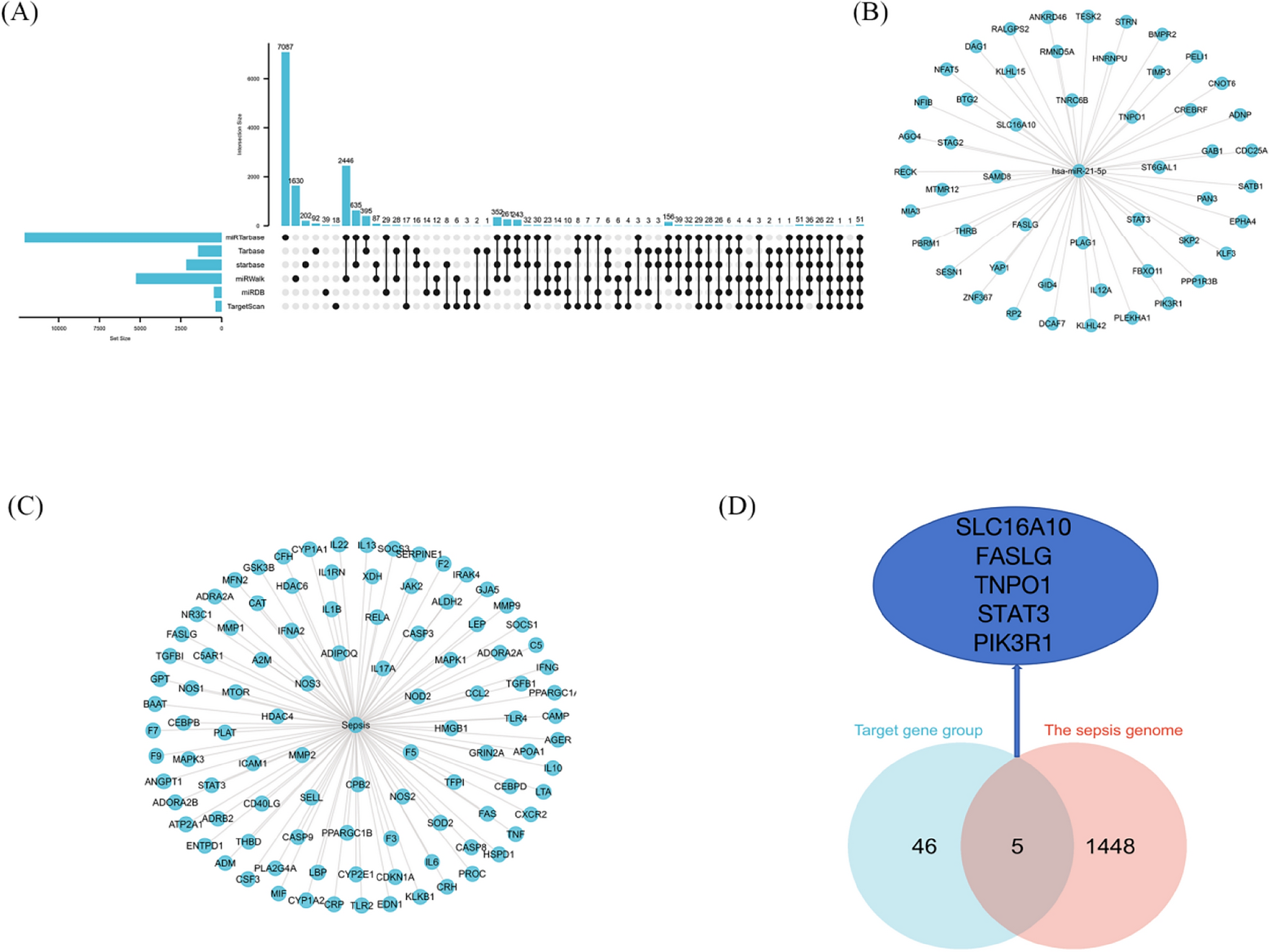

Prediction of miR-21-5p target gene. (A) The distribution of miR-21-5p target genes in the prediction software was shown by upset diagram, including miRDB, TargetScan, miRWalk, Starbase, Tarbase, Mir-tarbase, and the number of intersecting target genes. (B) The above six databases are interlinked, specifically containing target genes. (C) Some of the genes associated with sepsis predicted in DisGeNet database. (D) The Venn diagram shows the intersection of genes associated with sepsis and target genes.
