Figure 3
From: Highly-integrable analogue reservoir circuits based on a simple cycle architecture

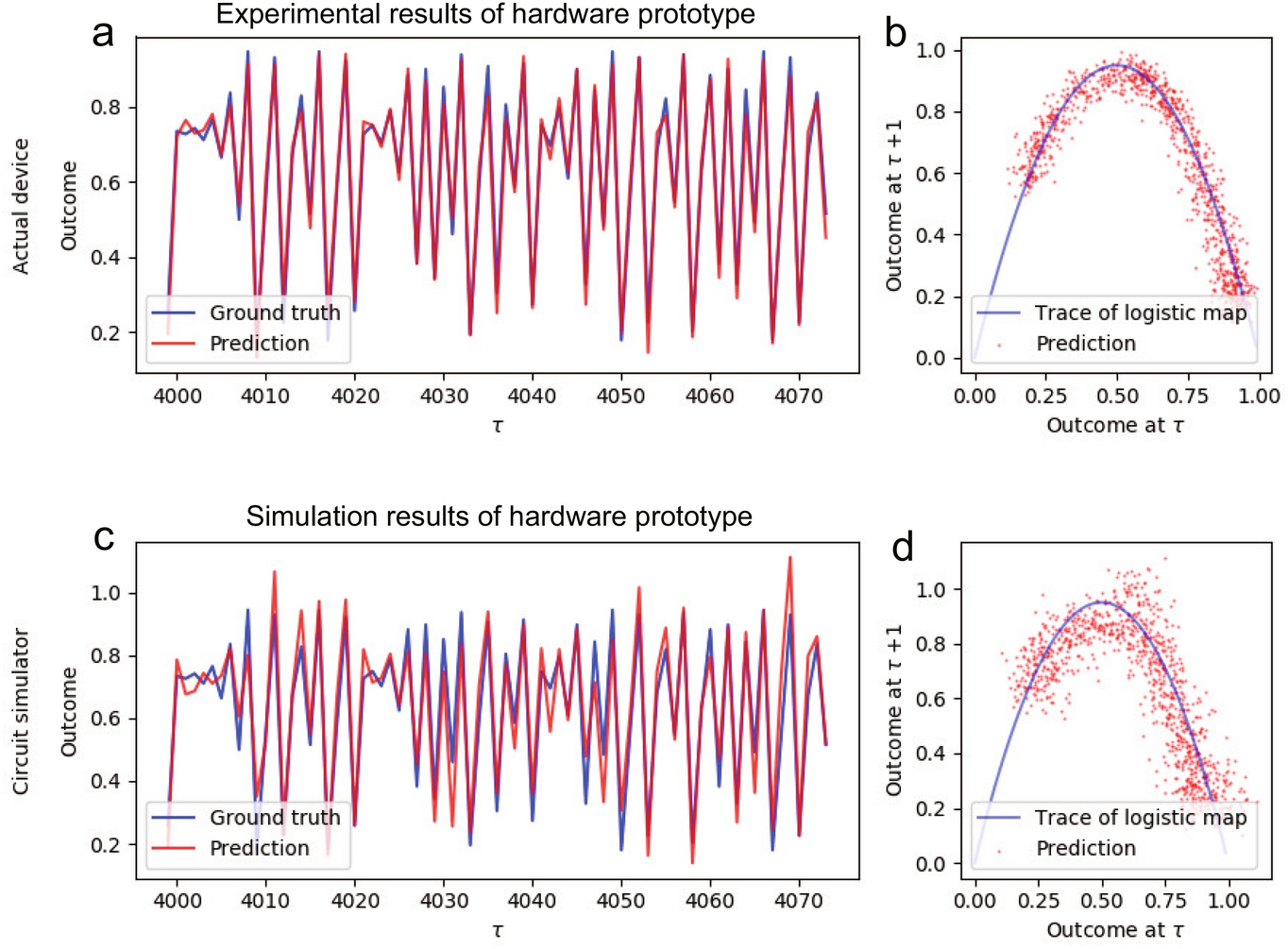

Logistic map prediction results. Experimental results of (a) time transition and (b) return map of the logistic map predictions by the developed PRC hardware prototype. Simulation results of the hardware are shown in (c) and (d). Here, the blue line represents the ground truth, while the red line or dots represent the prediction results.
