Figure 5
From: Study of equivalent circuit of GaN based laser chip and packaged laser

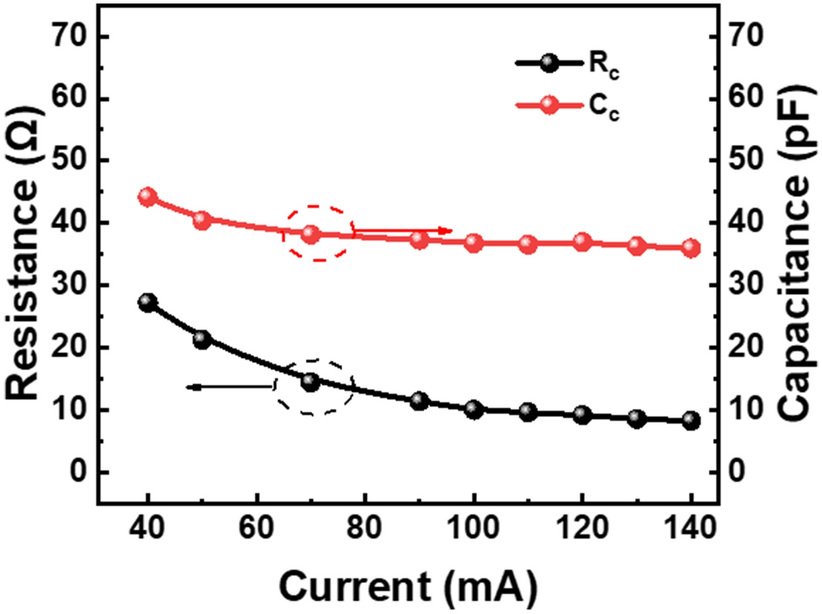

Extracted values of the parasitic resistance (Rc) and capacitance (Cc) in the equivalent model shown in Fig. 1a under an injection current ranging from 50 to 140 mA. The red trace represents the variation in the capacitance, and the black trace represents the variation in the resistance.
